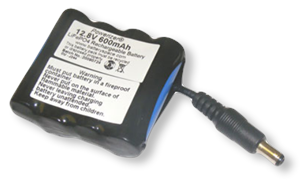

Custom LiFePO4 14505 Battery: 12.8V 600 mAh (7.7Wh, 0.6A rate)

Your Price: $29.95
Lead Time: 5 Business Day

Product Options

Terminal:


Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Packing
Voltage 12.8 V (working)   14.4 V (peak)  10.0 V ( cut-off)
Capacity 600 mAh (7.7Wh)
Protection
  • One PCB (2A limited) installed with the  battery pack and protects the battery from
    • Overcharge       (>15.2V)
    • Over discharge  ( <10.0 V)
    • Over drain ( >2.0 Amp)
    • Short circuits
Prewired Option 1: 0.3" wire with 5.5x2.1mm Male Barrel connector (Inside barrel is positive)

       Option 2: 4" long 16 AWG wire without connector
  • Red = Positive
  • Black = Negative
Max. Discharging Rate 0.5A ( recommended), 600mAMax
Max Charging Current 600mA
Dimensions(LxWxH) 57mm(2.9") x 56mm(2.2") x 19mm(0.7")
Weight 2.8Oz (80.0 grams)

Warnings

  • 12.8V LiFePO4 battery pack shall be cut-off at 14.4V during charging and 10.0V during discharging
  • Never discharge the pack below 10V. Always store the battery above 12V!
  • Please click Knowledge on LiFePO4 battery to learn more details
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
