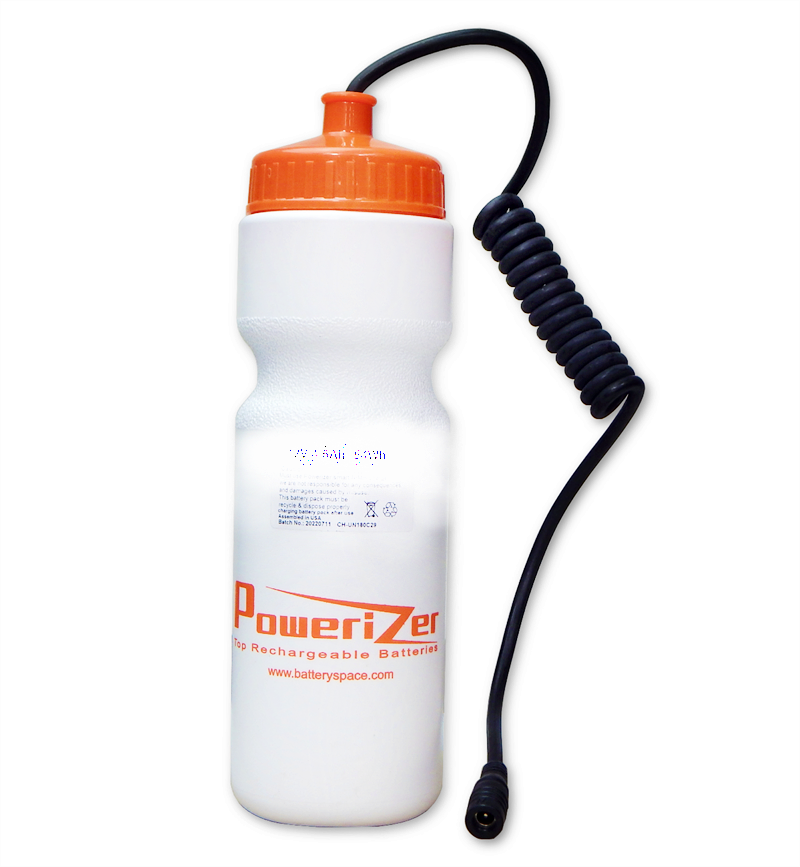

Custom Water Bottle LiFePO4 Battery: 6.4V 13.2Ah (84wh) for HID / Halogen Bike light (TrailTech plug) (7.92)

Your Price: $100.00
In Stock

Product ID # 7022
Part Number:
CU-J767

Lead Time: 5 Business Days!


Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Packing
Voltage 6.4V (working)   7.4V (peak)  4.5V ( cut-off)
Capacity 13200mAh ( 84.48 Wh)
Prewired Charge/Discharge terminal : 4' Trail-Tech female coil-cord coaxis connector
Protection
  • 2 x PCB (12A limited) installed with the  battery pack and protects the battery from
    • Overcharge (>7.4V)
    • Over discharge  (<4.5 V)
    • Over drain ( >12 Amp)
    • Short circuits
  • 2 x 7A polyswitches
Cycle Life    >1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Charging rate 1.5A ( recommended), 3.0A Max
Max. Discharging Rate 12Amp limited by PCB
Dimensions(DiaxH) 70mm(2.75")  x 178mm(7.0")
Weight 750grams (1.7Lb)

Applications

  • 6V Bike lighting up to 20W halogen light / HID light
    • Note: if you have dual light =25W, you might need to power on one light at a time.
