Custom Polymer LiFePO4 Battery Pack: 16V 20Ah (320Wh, 7A rate) with Anderson connector

Your Price: $368.00
In Stock

Product ID # 9965
Part Number:
CU-J1134

Lead time is 5 business days!


Quantity Discounts

QuantityAmount
5 to 20$356.96
21 to 50$349.60
51 to 100$342.24
101 or more$331.20

Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Packing
Voltage 16V (working)   18.0V (peak)  12.5V ( cut-off)
Capacity 20Ah (320Wh)
Cycle life > 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection
  • 1x  7A PCBinstalled on top of the battery pack to protect the battery from
    • Overcharge (> 19.5V)
    • Over discharge  (<11.5V)
    • Over drain ( >7.0Amp)
    • Short circuits
    • with build in 7A polyswitch
Prewired

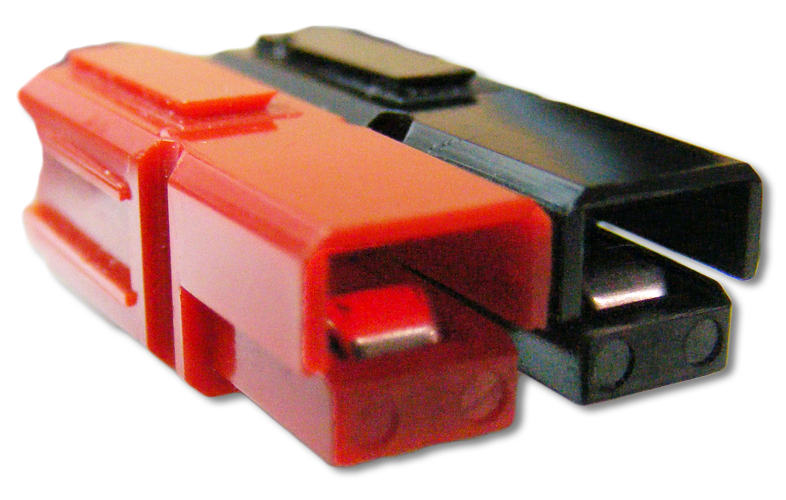

  • Charging/Discharging terminals: 24" 18 AWG with Anderson connector
    • Layout of connector must be same direction as inidcated on picture shown
Charging rate 4A recommended
Max. Discharging Rate 7Amp limited by PCM
Dimensions(LxWxH) 370mm(14.6") x 202mm(7.95") x 23mm(0.91")
Weight 92Oz (2.6kg)

Applications

Warnings

Please click Knowledge on LiFePO4 battery to learn more detail

Related Products

  • Currently, we don't carry a 16V LFP charger!
