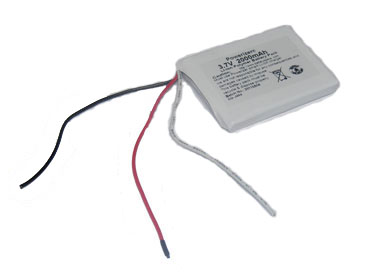

Custom Polymer Li-Ion battery: 3.7V 2000mAh (7.4 Wh, 605060-2C) - UN38.3 Passed

Your Price: From $21.95 to $26.95
Lead Time: 5 Business Days

Product Options

Connector options:


Battery
Voltage Voltage: 3.7V (working)   4.2V ( peak)  2.75V(cut-off)
Capacity 2000 mAh, 2.0 Ah, 7.4 Wh
Protection
  • 1x 5A PCB  installed with the  battery pack and protects the battery from
    • Overcharge
    • Over discharge 2.5V
    • Over drain
    • Short circuits
  • 1x 10k Thermistor
Terminal options

CU-J484: 4.0" long 24 AWG open end wire.
Maximum Current: 3.5A, limited by 24AWG wire

  • Red = Positive
  • Black = Negative and return of 10K thermistor
  • White = 10k thermistor

CU-J484-V1: 2.5" 26AWG with Molex 51021-0300 connector.
Maximum Current: 2.2A, limited by connector

  • Pin 1 = Red = Positive
  • Pin 2 = BLK = Thermistor
  • Pin 3 = BLK = Negative/Thermistor

PR-CU-R512: 4" with JST SHR-03V-S (no protrusions), SSH-003T-P0.2.
Maximum Current: 0.86A, limited by 30AWG wire

  • Pin 1 = Negative (Black),
  • Pin 2 = Thermistor (White),
  • Pin 3 = Positive (Red)
  • 30AWG stranded wire (7/38 strands), Alpha wire 1851
Dimensions (LxWxH)

68mm(2.7") x 50mm(2.0") x 7.0mm(0.3")

Weight 1.4Oz (40 grams)
Related Products
Warning
  • Li-Ion battery may explode if misused.  We are not responsible for any damages or losses caused by misuse (including but not limited to: improperly charging/discharging, any changes of this battery pack, disassembling battery packs).
  • Always charge battery with attention.  Battery pack should be placed in a fireproof place to avoid any accidents.
  • Please check battery polarity before connecting to a device
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
