Custom Polymer Li-Ion Battery: 3.7V 10Ah (37Wh, 5A rate) with JST-XHP-3 Connector

Your Price: $62.95
In Stock

Product ID # 11343
Part Number:

Lead Time: 5 Business Days
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
  • 3.7V 10Ah Li-Ion Battery pack is made of 2 pcs of 3.7V 5000 mAh (PL896474) with Built in Protection IC (PCB) & Polyswitch to avoid battery over charge and over discharge.
  • 1x 5.5A Amp polyswitch
  • 1x 10K NTC
  • 1x  PCB (5A) installed with the  battery pack and protects the battery from
    • Overcharge       (>4.2V)
    • Overdischarge  ( <2.5 V)
    • Over drain ( >6.0 Amp)
    • Short circuits
Voltage Voltage: 3.6V (working)   4.2V ( peak)  2.5V(cut-off)
Capacity 10Ah, 37 Wh
Energy Density 185Wh/kg

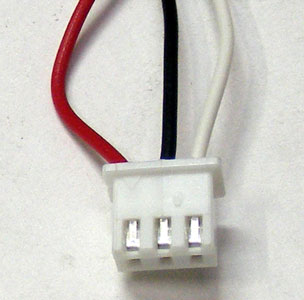

  • 9" long 22AWG with JST-XHP-3 Connector
    • Pin 1 = +, Pin   2 = -, Pin 3 = NTC white wire
Max. Discharging Rate 5Amp limited by PCB
Max Charging Rate 5.0A Max.  (1.0C rate)
Dimensions (LxWxH)

78mm (3")x 64mm (2.5") x 20mm (0.75")

Weight 9.2 oz (260.81 g)
Other Optionals
  • Li-Ion battery may explode if misused.  We are not responsible for any damages or losses caused by misuse.
  • Always charge battery with attention. Battery pack should be placed in a fireproof place to avoid any accidents.
  • Please don't use the battery modules to make series connection or parallel connection with more than 2 packs, otherwise battery service life may be reduced.
  • For safety warning please see the link here
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
