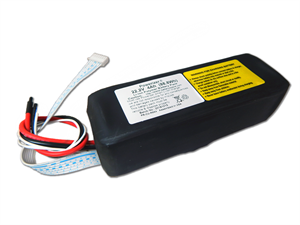

Custom Polymer Li-Ion Battery: 22.2V 4Ah (88.8Wh, 15A rate) with NTC - UN38.3 Passed


Your Price: see Notes
Not for General Sales

Product ID # 11426
Part Number:
PR-CU-R664

Lead Time: TBC
Battery
Voltage       Nominal: 22.2V; Charge Cut off: 25.2V; Discharge Cut off: 16.5V
Capacity
  • 4000 mAh (88.8wh)
Protection
  • 1 x PCM(15A limited) is installed in the battery pack to protect battery module from
    • Over charge / Over discharge / Over drain / Short circuits
  • 1 x 15 Amp polyswitch installed to limit discharging current and to protect wrong polarity
  • 1 x 10K NTC
Terminal
  • Charging/Discharging: 8" 14AWG:  Red = Positive; Black = Negative
  • NTC:     8" 22AWG x 2, White = NTC
  • Cell voltage senesing  6" wire terminal (JST-XH
Charge Current      Standard: 0.2C/800mA;  Max: 4Amp
Discharge Current      Standard: 0.2C/800mA;  Max: 15 Amp limited by PCM
Dimensions (LxWxH)      138x47x55mm
Weight      1.0 lb 6.2 Oz  (630 grams)
Temperature
  • Charge: 0 to 45°C; Discharge: 0-60°C;
  • Storage:
    • ≤1 month: -10 to 45°C;
    • ≤6 month: 0 to 30°C;
    • Best : 20±5°C
Related Product
  • You may use  1.5A Smart Li-ion battery charger to charge the pack with 4.0 hrs charge time.
    • Must plug the charger and the connector adapter to battery pack with correct polarity.
    • Batteryspace.com will not be responsible for any damage caused by misuse
Warning
  • Lithium battery may explode if not used properly. Please refer above specification. We are not responsible for any damages or losses caused by misuse, which include but are not limited to:  over charge, over discharge, over current, any changes of this battery pack, disassemble battery pack) .
  • Always charge battery with attention.  Battery pack should be placed in a fireproof container during charge to avoid any accidents
  • Please check battery polarity before connecting battery with device. Never make wrong polarity connection.
  • For safety warning please see the link here
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
