Custom Polymer Li-ion Battery: 14.8V (888 Wh, 4A, 9059156-1C) with 12V Regulator

Your Price: From $821.00 to $836.00

Lead Time: 5 Business Day

Product Options

Terminals:

Quantity:

Email this page to a friend

*Important Shipping Regulation	This pack is for testing (prototype) only. It has not been UN38.3 tested yet. Read more...
Packing	Custom 14.8 V 60 Ah pack is made of 24 pcs Polymer Li-Ion cell of 3.7V 10Ah with 12V 4A DC regulator & 10A PCB Wrapped by Heat shrink tube (2 layers) in a 4S6P configuration.
Voltage	12 v (working) 11 V ( cut-off)
Capacity	60Ah (888 Wh)

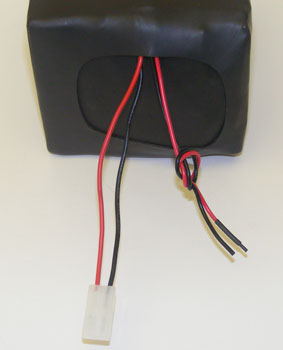

Prewired	CU-J588:Separate charge/discharge terminal Charging terminal: 12" wire of 14AWG Standard Male Tamiya connector. Discharging terminal: 12" wire of 18AWG wire without connector. One 10A PCB located on the front of the pack to protect battery from Overcharging beyond 4.25V/cell Over discharging below 2.75V/cell One 12V 4A DC regulator(RCB-DCDC006) located on the front of the pack CU-J588-V1: Separate charge/discharge terminal Discharge terminal with female cigarette lighter socket . Charge terminal Andersen Connector. One 10A PCB located on the front of the pack to protect the battery from Overcharging beyond 4.25V/cell Over discharging below 2.75V/cell One 12V 4A DC regulator(RCB-DCDC006) located on the front of the pack
Max. Discharging Rate	4 Amp limited by regulator
Dimensions (LxWxH)	6.5" (166mm) x 4.5" (115mm) x 5.0" (128mm)
Weight	10.0lbs 9.4Oz (4.8kg)
Smart Tips	You shall choose this 6.0A smart charger to recharge this battery pack. The charged time is about 12.0 hour You will need to order this 4 Pin Cannon Male to Standard Female adapter to connect the charger to the battery pack.
Warning	Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misusing the battery pack Please never discharge the battery pack beyond its Max. rating For safety warning please see the link here Please allow us to delivery the battery pack in 2-3 weeks after receipt payment because it need to be tested before shipping California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
