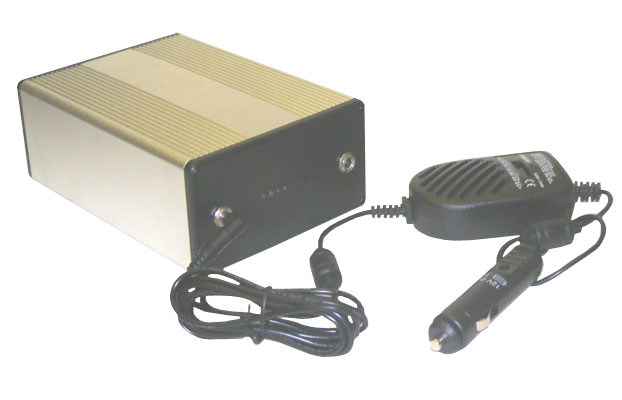

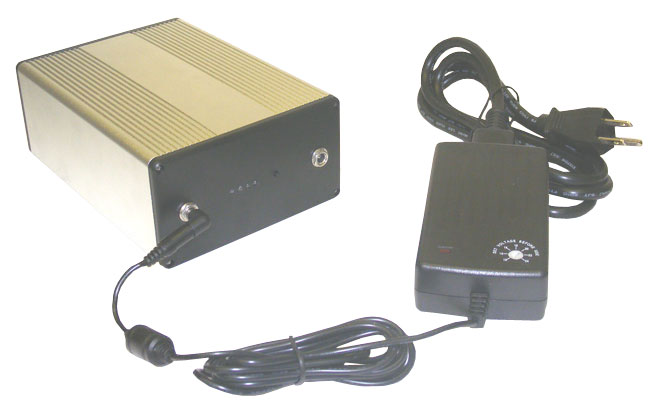

Custom Polymer Li-Ion Battery: 14.8V 20Ah (296Wh, 10A rate, 9059156-1C) w/ CMB & Fuel Gauge


Your Price: $315.00
In Stock

Product ID # 11186
Part Number:
PR-CU-R608

Lead Time: 7 Business Days
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
 Packing
 Voltage
  •  DC Input (Charging mode):
    • Input power: DC 16.0V - 18.0V  ( > 60W), 3.0A Max
    • CC (Constant Current) / CV (Constant Voltage) with cut-off input power when battery pack voltage reaches 14.6V
      • CC/CV, CC = 3.0A, CV = 3.65V Max per cell
  • DC Output (Discharging mode)
    • Voltage: 14.8 V (working)  16.8 V (peak)  9.2 V ( cut-off)
 Capacity    20 Ah (296Wh)
 Cycle life    >300
Protection
  • One CMB (10A limited) installed with the  battery pack for perform smart charging and discharging protection
    • Smart Charging mode
      • CC (Constant Current) / CV (Constant Voltage) with cut-off input power when battery pack voltage reaches 16.8V
      • Max charging current is 3.0A
      • Note: Since the CMB installed inside battery pack will peform CC (Constant Current) / CV (Constant Voltage) charging, you don't need use our 14.8V Li-Ion Smart charger charge battery pack. Please use 16.0V- 18.0VDC  ( > 60W), 3.0A Max  DC power supply charge battery pack
    • Discharging protection
      • Overcharge (> 16.8V)
      • Over discharge  (<9.2 V)
      • Over drain ( >10 Amp)
      • Short circuits
Pre-wired
Charging rate     3.0 A Max  limited by CMB
Max. Discharging Rate     10.0A Max limited by CMB
Dimensions (LxWxH)
  • 166 x060 x 90mm (MAX) (6.5" X 2.5" X 3.5")
Weight
  • 1620 grams (3 lbs 9.1 ounces)
 Smart Tips

  • Note: Since the CMB installed inside battery pack will peform CC (Constant Current) / CV (Constant Voltage) charging, you don't need use our 14.8V Li-Ion Smart charger charge battery pack. Please use above recommended DC power supply charge battery pack
 Warning
  • 14.8V Polymer Li-Ion battery pack shall be cut-off at 9.2 V during charging and 16.8V during discharging
  • Must charge the pack by DC charge method via only charging terminal.
  • Since the battery pack have a CMB installed to perform a smart charging, Please don't use any 14.8V Li-Ion smart charger for charge battery pack
  • We are not responsible for any damages or losses caused by misuse (including but not limited to: improper charging/discharging, any changes of this battery pack, mis-assembling battery packs)
  • Always pay attention when charging the battery pack. Battery shall be put in a fireproof place or fireproof container to avoid any accidents.
  • Please always check battery polarity before connection to device. Never make wrong polarity connection
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
