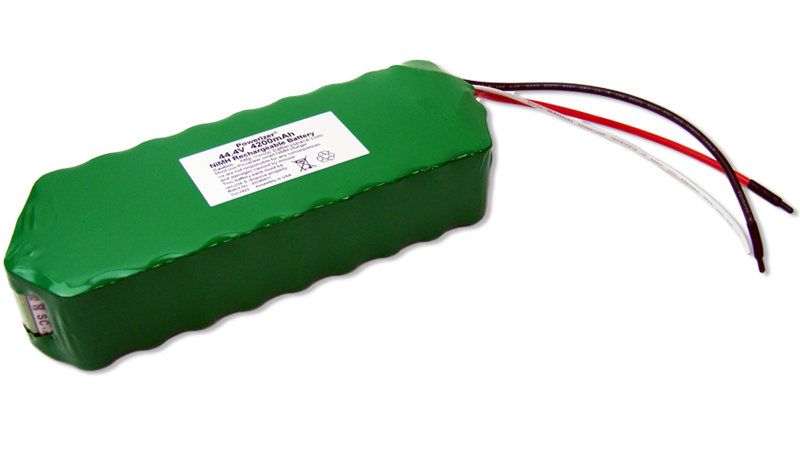

Custom NiMH Battery Pack: 44.4V 4200mAh (186 Wh, MH-SC4200) 30A Drain with thermistor
Your Price: $178.00
In Stock

Product ID # 8485
Part Number: CU-J923

Lead Time: 5 Business Days!
Add to a new shopping list

Quantity Discounts

QuantityAmount
25 to 50$169.10
51 to 100$160.20
101 to 500$151.30
Battery
  • Custom NiMH Battery Pack: 44.4V 4200mAh (186 wh) Battery, 30Amp Drain Rate with thermistor
    • Offset configuration (9x9x10x9)
Voltage       44.4V (min) 37V ( working )   51.8V ( peak)
Capacity       4.2 Ah or 186wh
Charging Rate       Standard 500mA     Max. 4.2A
Discharging Rate
  • Standard rate: 15Amp  ( Recommended and warranted)
  • Highest rate for continuous running:  30Amp
  • Max. Rate for short time: 42 Amp ( Not recommend as working rate )
 Pre-wired
  • 3 terminals
    • 7.0" 12AWG RED open end wire for Positive
    • 7.0" 12AWG Black open end wire for Negative/Thermistor
    • 7.0" 18AWG White open end wire for thermistor
 Dimension (LxWxH)

     245mm (9.7") x 83mm (3.4") x 48mm (1.9")
 Net Weight      5.6lbs (2.54kg)
 Cautions
  • Please don't discharging the battery pack below 33V  ( 1.0 V / cell)  Deep discharging may damage NiMH battery pack.
  • Charging battery immediately every time it is discharged. Never storage the battery pack at below 33V.
  • Please read the safety warning from the link
Notes Things to know about Nimh Batteries
