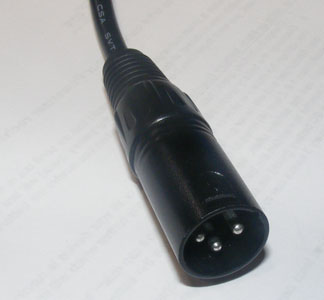

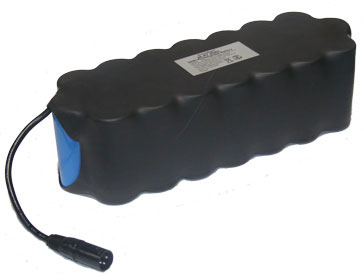

Custom NiMH Battery Pack: 26.4V 26Ah (686Wh) or 20Ah (528Wh) with Canon Connector (MH-M26)


Your Price: Call to Order
Lead Time: TBC

Product Options

Capacity:
 Battery
 Voltage     26.4V ( working )    ( 31.9V at peak)
 Capacity     26Ah  ( 686 Wh)/ 20Ah (528Wh)
 Charging current     5.2A / 4A (02.C rate)
 Discharging rate
  • Standard rate: 26Amp/ 20Amp ( Recommended and warranted).
  • Highest rate for continuous running: 52Amp for 26Ah Pack/ 60Amp for 20Ah Pack
 Protection
 Prewired
 Dimension (LxWxH)  336mm(13.2") x 120mm(4.7") x 98mm(3.9")
 Weight     21 Lbs 12.8 Oz (9.9kg)
 Related Product

 Applications
  • Replace 24V NiMH Battery Pack for Electric Scooter and RC Robot with higher speed and longer running time
 Cautions
  • Please don't over discharge the NiMH battery pack below 1.0V / cell
  • Please don't over discharge the battery beyond 30A which may damage the battery permanently
  • Charge battery from charging terminal only
  • Recharge battery pack after use for longer storage life
Notes Things to know about Nimh Batteries
