Custom NiMH Battery Pack: 19.2V 1.6Ah (30.7Wh, 4x4S/S, MH-2/3A1600B)

Option 1: with 4 pin female XLR connector
Option 1: with 4 pin female XLR connectorOption 2: 14AWG with Anderson connectorOption 3: 16AWG Open Wire
Your Price: From $49.95 to $61.95
Lead Time: 5 Business Days

Product Options

Connectors Option:
Battery
  • Custom 19.2V NiMh pack build with 16 pcs 1.6Ah NiMh 2/3Acell (4x4 Square configuration) shrink wrap with thin PVC.
  • one NTC 10K
Voltage       Voltage:  19.2V (working)   22.4 V (peak)  16.0V (min.)
Capacity       1.6Ah (30.7Wh)
Terminal Options
  • Charge / Discharge terminal:
  • PR-CU-R343: 6.0" 22AWG with 4 pin female XLR connector
    • Pin 1=(V-), Pin 2 (V+), Pin 3 & 4=temperature sensor.

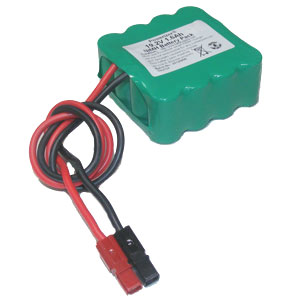

  • CU-J724: 13.0" 14AWG with Anderson connector (NO temp. sensor)
  • PR-CU-R343-V1: Red and black 6.0" 16AWG open end wires (NO temp. sensor)
Discharging Rate       Standard discharge is: 1.5Ah, Max:15Ah
Dimension (LxWxH)       2.8" (70mm) x 2.8" (70mm) x 1.2" (30mm)
Weight       13.4oz (378g)
Related Products
  • Option 1: For faster and safer charging,  please  use our 19.2V -24V 1.5A charger (PR-CU-R317) to recharge this pack. Charge time is about 1.5 hrs.
  • Option 2: For faster and safer charging,  please  use our 19.2V -24V 1.5A charger to recharge this pack. Charge time is about 1.5 hrs.
Warnings
  • Please always charge battery with a smart charger and from charging terminal only
  • Never let battery discharge below 16V or 1.0V per cell
  • Warning: please check and match the polarity of our connector to your device. We are NOT liable for any damage to your device due to reverse polarity
  • Option 1 / Option 2/ Option 3
