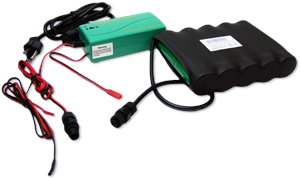

Custom NiMH Battery Pack 12V 10Ah (120Wh, 5A rate, MH-D30) + Smart Fast Charger (1.8A) with AMP connector

Option 1: Battery Pack & Charger Combo
Option 1: Battery Pack & Charger ComboOption 2: Battery Pack Only
Your Price: Not for general sales
Lead Time: To be confirm!

Product Options

Combo option:

Features

Packing
  • Made of 10 pcs high quality NiMH D size cells, assembled 5 side by side and 2 end to end configuration with 1838276-1 connector.
  • Wrapped by heavy duty heat shrink tube.
Voltage 12V ( working )    14.5V ( peak)
Capacity 10Ah   or 120 wh
Charging Rate Standard 1.8 A     Max. 5 A
Discharging Rate
  • Standard rate: 4Amp  ( Recommended and warrantied)
  • Highest rate for continuous running: 4Amp
Protection One 65o thermostat inside the pack to protect battery from overcharging.
Prewired

Charging and discharging terminal: 12.0" 18AWG wire with 1838276-1 connector, pin 3 (+), pin 4 (-).

Battery Dimensions(LxWxH) 5.0" (127mm) x 1.42" (36mm) x 6.7" (170mm)
Weight
  • Battery Weight: 3.0 lbs 11.2Oz (1680 grams)
  • Charger Weight: 1.2 lb (544 g)
Notes Things to know about Nimh Batteries

Combo Options

  • Option 1: Battery Pack & Smart Charger Combo
    • Included one 9.6V-18V Universal smart charger with 1838277-1 connector
      • The smart charger will automatically cut off power when battery is full.
      • Charging time is about 7 hrs.
  • Option 2: Battery Pack Only

Warnings

  • Please don't discharging the battery pack below 10V (1.0 V / cell)  Deep discharging may damage NiMH battery pack.
  • Please read more safety warning at the link
  • NOTICE: Any changes made to our battery and charger will VOID warranty.
