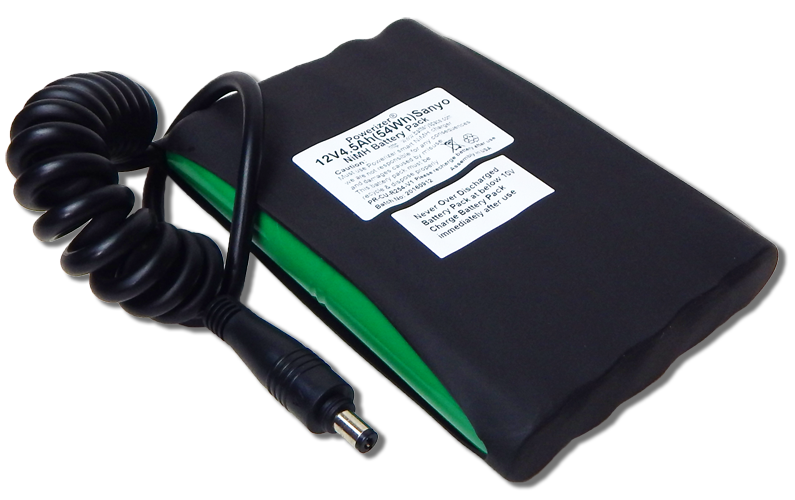

Custom NiMH Battery: 12V 4500mAh (54Wh, Sanyo cell) with 6" Trailtech Connector

Your Price: $105.20
Customize pack lead time: TBD

Product Options

Terminals:


Battery
Voltage      12V ( working )    14.5V ( peak)
Capacity      4.5 Ah   or 54 wh
Charging Rate      Standard 1.8 A    Max. 4.5 A
Discharging Rate
  • Standard rate: 4.2 Amp@20'C  ( Recommended and warranted)  limited by polyswitch
  • Discharging current will be reduced if the operate temperature increase
Terminal & Protection
Dimension

       5.5" Long  x  3.5" width  x  0.75" height;

Net Weight       20 oz
Related Products
Cautions
  • Please don't discharging the battery pack below 10V  ( 1.0 V / cell)  Deep discharging may damage NiMH battery pack.
  • Charging battery immediately every time it is discharged. Never storage the battery pack at below 10V.
  • Please don't use charger terminal to discharge battery
  • Please read more safety warning  at the link
  • NOTICE: Any changes made to our battery and charger will VOID warranty
Notes Things to know about Nimh Batteries
