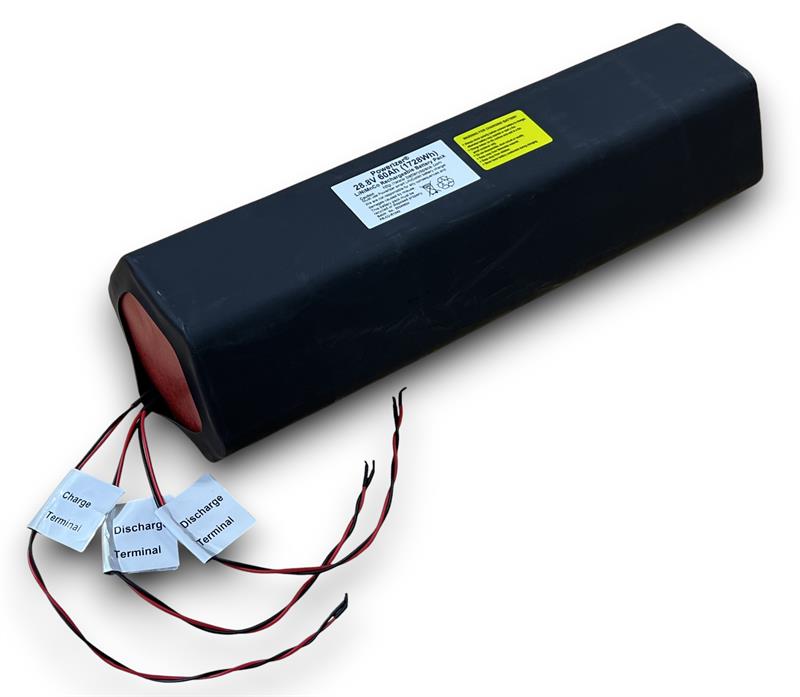

Custom LiNiMnCo 26650 Battery: 28.8V 60Ah (1728Wh, 15A rate, INR-26650-5000)
Your Price: $1,235.00
Build to order

Product ID # 13302
Part Number: PR-CU-R1042

Lead Time: 5-10 Business Days / Hazmat handling fee required*
Add to a new shopping list
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
Voltage       Voltage: 28.8V (working)   33.6 V (peak)  22V ( cut-off)
Capacity       60Ah
Protection
  • 1 x PCM (20A limit) with balance function is installed in the battery pack to balance charging and protect battery
    • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
  • 1 x 15A Polyswitch
Terminal
  • Charge terminal: 12" long 20 AWG  open end wire
  • 2 x Discharge terminal:  12" long 18 AWG  open end wire
Charging rate
  • 2500mA
Max. Discharging Rate
  • 15 Amp
Dimensions (LxDia)
  • 405mm x 135mm (16" x 5.31")
Weight
  • 21 Lbs (9.53 kgs)
Related Products
  • You can choose our 3.0A Smart Li-Ion Battery charger to recharge this pack.
  • Warning:  Please wait 30 minutes after charged to allow PCM to balance the cells to achieve the best performance
Applications
  • Custom
Warning
  • 28.8V LiNiMnCo battery pack shall be cut-off at ≤33.6V ( ≤4.2V/cell ) during charging and ≥22.0V (≥2.75V/cell) during discharging
  • We are not responsible for any damages or losses caused by misuse (included but not limited to: improper charging/discharging, any changes of this battery pack, miss-assembling battery packs)
  • Always pay attention when charging the battery pack. Battery shall put in a place or container with fire - proof to avoid any accident
  • Please always check battery polarity before connection to device. Never make wrong polarity connection
