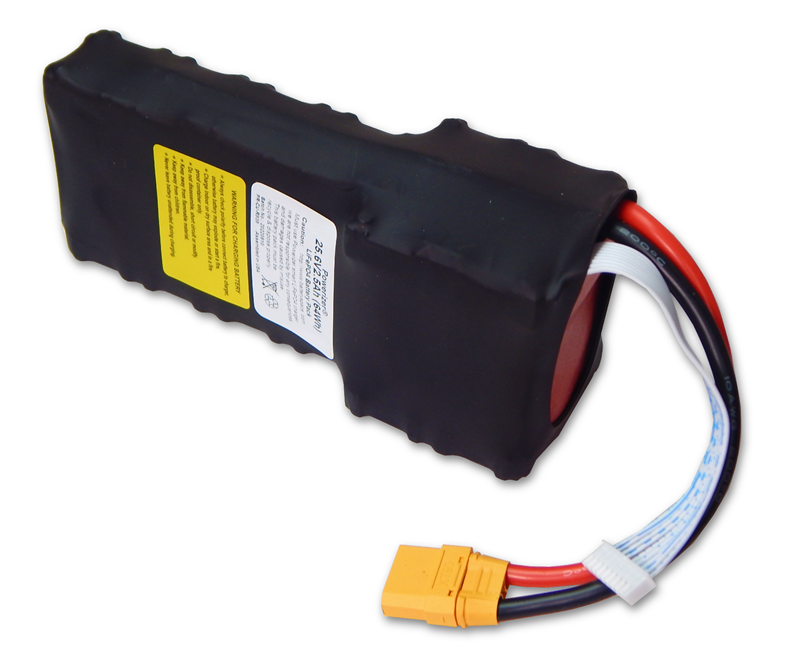

Custom LiFePO4 26650 Battery: 25.6V 2.5Ah (64Wh, 50A Rate, ANR26650M1B) NO PCB

PR-CU-R939
PR-CU-R939
Your Price: Not for general sales
Out of stock

Product ID # 12793
Part Number:
PR-CU-R939

Lead Time: TBC

Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
Voltage 26.4V (working)   29.2V (peak)  20V ( cut-off)
Capacity  2.5Ah
Protection
  • NO PCB is installed in the battery pack to balance charging and protect battery module from
    • Overcharge  / Over-discharge / Over drain / Short circuits
  • Please fill out Safety Acknowledgement Form- No PCB
Terminal Discharge terminal: 130mm 10AWG wire with XT-90F connector

         Balance Charging terminal: 90mm 22AWG wires with JST XH-9 connector:
  • Pin 1 = V+
  • Pin 2 = 23.1V
  • Pin 3 = 19.8V
  • Pin 4 = 16.5V
  • Pin 5 = 13.2V
  • Pin 6 = 9.9V
  • Pin 7 = 6.6V
  • Pin 8 = 3.3V
  • Pin 9 = V-
Charging rate
  • Standard Charging: 2.5A
  • Maximum Charging: 10.0A
Discharging rate
  • Maximum Continuous Discharging  :50A
  • CCA (< 10 sec): 120A
Dimensions (LxWxH)
  • 180mm x 58mm x 80mm
    Weight
    • 712 grams  ( 25.6 oz )

    Applications

    • Custom

    Warnings

    • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
