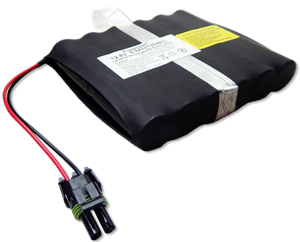

Custom LiFePO4 26650 Battery: 12.8V 9.9Ah (126 Wh, 4A rate) with Polyswitch, thermostat & Delphi connector - UN38.3 Passed

Your Price: $160.00
In Stock

Product ID # 7256
Part Number:
CU-J819

Lead Time: 5 Business Day


Features

Battery
  • Customize 12.8V 9.9Ah LiFePO4 Li-Ion rechargeable battery Module is made of 12 pcs LiFePO4 3300 mAh cylindrical cells in 4S3P (6x2) configuration
  • with heavy duty shrink wrapped and tape handle on where the pcb located!
  • Replacement for CU-J251
Voltage       12.8 V (working)   14.6 V (peak)  10 V ( cut-off)
Capacity       9.9 Ah (126.72 Wh)
Cycle life       > 2000 cycles at 1 C rate
Protection
  • 1 x  PCB (7A limited)(must located on top of pack. see attach picture on location) installed with the  battery pack and protects the battery from
    • Overcharge (> 15.2 V)
    • Over discharge  (<10.0 V)
    • Over drain ( >7 Amp)
    • Short circuits
  • 1 x 70C Thermostat to protect battery when temperature is above 70C
Pre-wired
  • 6.0" #18-1015 AWG wire with Delphi Packard connector(shrink tube about 1" from the battery pack):
    • Delphi Packard connector (P/N: 12015792) Qty: 1
      • Pin A = Red (Positive) Pin B = Black (Negative)
    • Delphi Packard socket P/N: 12124580 Qty: 2
    • Delphi Packard Cable Seal P/N: 15324982 qty: 2
Charging rate       4.0 A Max (limited by 4A polyswitch)
Max. Discharging Rate       4.0Amp limited by 4A Polyswitch
Dimensions(LxWxH)       165mm (6.5") x 137mm (5.4") x 28mm (1.1")
Weight       1170 grams (2.57lb)

Warnings

Please click Knowledge on LiFePO4 battery to learn more detail
