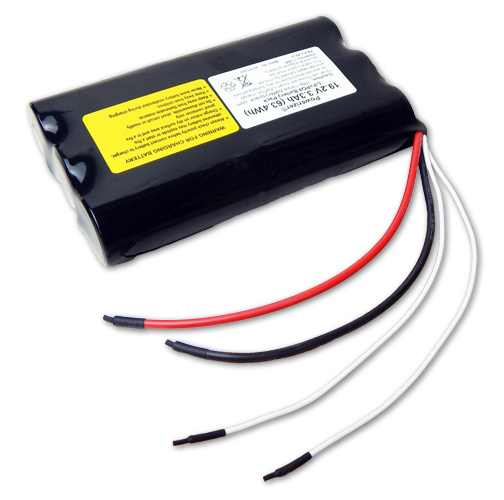

Custom LiFePO4 26650 3x2 Flat Battery Pack: 19.2V 3.3Ah ( 63.4Wh, 14A rate ) with PCB (5.9)

Your Price: $120.00
In Stock

Product ID # 9794
Part Number:
PR-CU-R433

Lead Time: 5 Business Days


Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Packing
Voltage           19.2 V (working) 21.9 V (peak) 15.0V ( cut-off)
Capacity       3.3 Ah (63.4Wh)
Cycle life       > 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection       2 x PCB-LFP19V7A for protection (mounted on side of pack)
      1x 10K thermistor
Prewired
  • Charge/Discharging terminal: 6.0" 16AWG open wires
  • (NTC) White = 6.0" 22 AWG
Charging rate       Normal: 1.5A Max: 3.3A
Max. Discharge Rate       14Amp  ( limited by PCB )
Dimensions(LxWxH)       81mm(2.3") x 35mm(1.4") x 134mm(5.28")
Weight       1.4 lbs

Warnings

  • BatterySpace is not responsible for any damages or losses caused by misuse (included but not limited to: improper charging/discharging, any changes of this battery pack, miss-assembling battery packs)
  • Always pay attention when charging the battery pack. Battery shall put in a place or container with fire - proof to avoid any accident
  • Please always check battery polarity before connection to device.
  • For safety warning please see the link here
