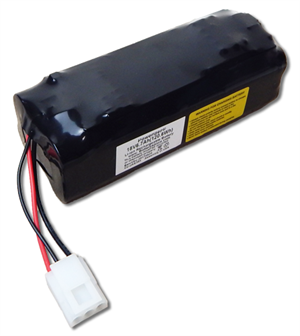

Custom Li-ion 18650 Battery Pack: 18V 6700mAh (120.6Wh, 7A rate, NCR18650B) - UN38.3 Passed & IEC62133:2012 Listed
Your Price: $227.00
Build to order

Product ID # 11086
Part Number: CU-JAS385 / 5ICR18/65-2

Lead Time: 5 Business Days
Add to a new shopping list

Quantity Discounts

QuantityAmount
5 to 20$220.19
21 to 50$215.65
51 to 100$211.11
101 or more$204.30
Battery
Voltage Norminal voltage: 18V
Charge cut Off voltage: 21 V
Discharge Cut off Voltage: 12.5V
Capacity Min: 6400mAh
Typical: 6700 mAh
Protection
  • 1x PCM (PCM-BL005S-10A(B)) installed with the  battery pack and protects the battery from
    • Overcharge / Over discharge / Over drain / Short circuits
    • Must wait min of 30 minutes after the battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
  • 1x 7.3 Amp polyswitch installed to limit max. discharging current and to protect wrong polarity
  • 1x 60oC thermostat for charging protection
Connector
  • Housing: 1-480721-0 x 1
  • Pin: 60619-4 x 2 for #1 Red 18AWG, #3 Black 18AWG
  • Pin: 60617-4 x 1 for #2 Black 22AWG
  • Wire: 2.5" Long (not include the connector)
Charge Current Standard: CC-CV, 3350mA to 21V, cut off 130mA
Discharge Current Maximum 7 Amp, limited by polyswitch
Temperature Charge: 0 to 45°C
Discharge: -20 to 60°C
Storage: -20 to 50°C
Dimensions 5.2" x 2" x 1.8" (133mm x 51mm x 48mm)
Weight 1lb2oz (510g)
Specification Specification
Related Charger
  • You may choose our 1.5A  Smart Li-Ion battery charger to recharge this battery pack.  But you need to change the connector of the charger to match the battery pack's connector. The estimated charging time is 5-6 hours .
