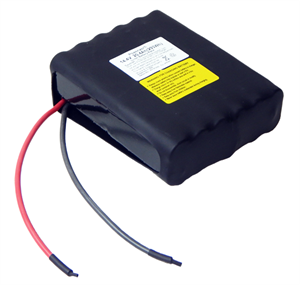

Custom Li-ion 18650 Battery Pack: 14.4V 20.1Ah (289.44Wh, 30A rate, NCR18650B)

Your Price: $315.00
In Stock

Product ID # 2493
Part Number:

 *Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
  • 14.4V 20.1Ah battery pack is made by 24 pcs 18650 3350mAH NCR18650B
  • Configuration: 6 cells side by side, 2 layer of 26mm cells on top of each other, then 2 sets of such end to end
  • The battery pack is wrapped with heavy duty shrink tube
 Voltage        Nominal: 14.4V; Charge Cut-off: 16.8V; Discharge Cut-off: 10V
 Capacity        20.1 Ah
  • 1x PCB (30A)is installed with the battery pack and protects the battery
 Terminal        6" 14 AWG
 Charge Current        ≤10Amp / 0.5C
 Max. Discharging Rate        30 Amp limited by PCB
 Dimensions (LxWxH)       150mm(5.9") x 135mm(5.3") x 45mm(1.8")
 Weight       3.6lbs
 Temperature        Charge: 0 to 45°C
       Discharge: -20 to 60°C
       Storage: -20 to 50°C
 Related Products


  • Always pay attention when charging the battery pack. Battery shall be put in a fireproof place or fireproof container to avoid any accidents.
  • Please always check battery polarity before connection to device. Never make wrong polarity connection
  • For safety warning please see the link here
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
