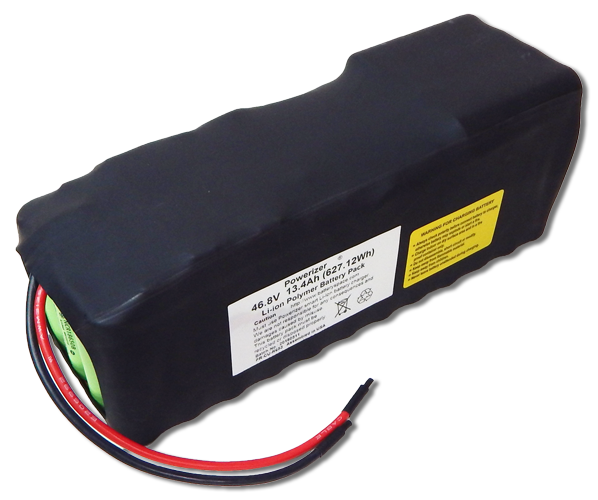

Custom Li-Ion 18650 Battery: 46.8V 13.4Ah (627.12Wh, 26.8A rate, NCR18650B) Rechargeable Battery Pack


Your Price: $544.35
In Stock

Product ID # 11399
Part Number:
PR-CU-R653

Lead Time: TBC
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
  • Custom 46.8V 13.4Ah Li-Ion Battery pack is made of 52pcs NCR18650B Li-Ion 18650 Cell  and packed in 13S4P configuration
  • Wrapped by heavy-duty Heat shrink tube
Voltage       48.1v (working)   54.6V ( peak)    32.5V ( cut-off)
Capacity       13.4Ah   (627.12wh)
Protection
  • One PCM(35A limited) is installed in the battery pack to balance charging and protect battery module from
    • Overcharge       (> 54.6 V)
    • Over-discharge  ( < 32.5V)
    • Over drain ( > 35 Amp)
    • Short circuits
  • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
Terminal
  • Charge / discharging terminal: 6.0" 14AWG pigtail
Max. Discharging Rate
  • 26.8Amp limited by cell.
Dimensions (LxWxH)       8.8" x  2.9" x 3.45" (224x75x86mm)
Weight       5lb 10.8oz (2580g)
Charger Options       Universal Charger
