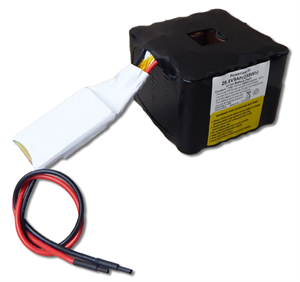

Custom Li-Ion 18650 Battery: 28.8V 9Ah (259Wh, 10A rate, 5x5, INR18650HG2)


Your Price: $350.00
Call to Order, Special part required

Product ID # 10717
Part Number:
PR-CU-R507

Lead Time: TBC

Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
Voltage                            28.8 V (working)   33.6 V ( peak)   22 V ( cut-off)
Capacity 9Ah   (259 wh)
Protection
  • One 28.8V (10A limited) PCM-SM16-29.6  installed away from the battery pack top with 2" wires that protects the battery from
    • Overcharge      (>33.6 V)
    • Over discharge  (< 29.6 V)
    • Over drain       (>10 Amp)
    • Short circuit
    • No polyswitch (TBC)
Terminals  8"' 16AWG open end wires
Max. Charging Current 10A
Max. Discharging Current 10 Amp limited by PCM

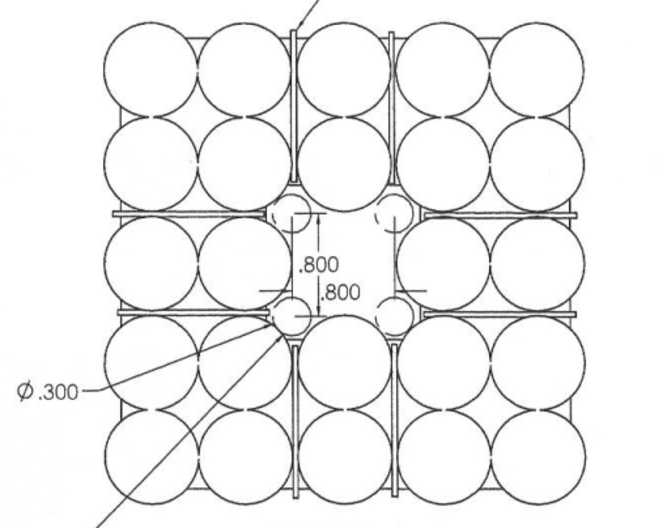

Dimensions(LxWxH) 3.70" x 3.70" x 2.55" (94mm x 94mm x 64.77mm )
Weight 2LB 10OZ (1200g)
