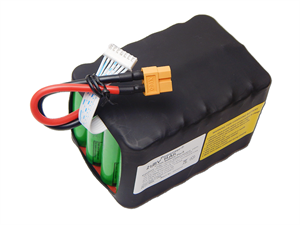

Custom Li-Ion 18650 Battery: 21.81V 14Ah (305.34Wh, 20A rate, INR18650 MJ1) NO PCB
|
|
Not for General Sales
Product ID # 12387
Part Number: PR-CU-R855
Lead Time: TBC
|
| *Important Shipping Regulation |
This pack is for testing (prototype) only. It has not been UN38.3 tested yet. Read more... |
| Battery |
|
| Voltage |
Nominal: 21.81V; Charge Cut off: 25.2V; Discharge Cut off: 15.0V |
| Capacity |
Nominal:14 Ah; minimum: 13.6Ah |
| Protection |
- NO PCB is installed in the battery pack to balance charging and protect battery module from
- Overcharge / Over-discharge / Over drain / Short circuits
- Please fill out Safety Acknowledgement Form- No PCB
|
| Terminal |
|
| Charge Current |
Standard: 6800mA / 0.5C
Maximum: 13600mA limited by cell |
| Discharge Current |
Standard: 2800mA / 0.2C
Maximum:20Amp limited by end user |
| Dimensions (LxWxH) |
114x75x72mm |
| Weight |
2lb 10oz |
| Termperature |
Charge: 0 to 45°C
Discharge: -20 to 60°C
Storage: 1 month: -20 to 60°C; 3 month: -20 to 45°C; 1 Year: -20 to 20°C |
| Related Products |
- You may use 6A balance charger to charge the pack via only charging terminal
- Batteryspace.com will not be responsible for any damage caused by misuse.
|
| Warning |
|
|
