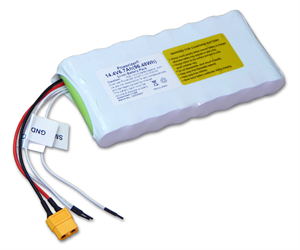

Custom Li-ion 18650 Battery: 14.4V 6.7Ah (96.48Wh, 9A rate, 8S/S, NCR18650B) with SBS board

Your Price: $209.80
In Stock

Product ID # 12778
Part Number:

Lead Time: two weeks
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
  • Custom 14.4V 6.7Ah pack made of 8pcs Panasonic NCR18650B 18650 Li-Ion cells in 4S2P side by side configuration
  • Wrapped by PVC shrink wrap
Voltage Nominal: 14.4V; Charge Cut-off: 16.8V; Discharge Cut-off: 10V
Capacity 6700mAh
  • SMbus with 3 x 4" 24AWG open end wires labeled:
    •  SMBD
    •  SMBC
    •  GND
  • 1x custom SBS (10A) board installed with the battery pack and protects the battery from
    • Overcharge / Over discharge  / Over drain / Short circuits
  • 1 x 9A Polyswitch
Charge Current ≤3250mA / 0.5C
Max. Discharge Current 9.0Amp limited by polyswitch
Dimensions(LxWxH) 148mm X 68mm  x 25.0mm
Weight TBC 396g  ( 14.0Oz )
Temperature Charge: 0 to 45°C
Discharge: -20 to 60°C
Storage: -20 to 50°C
Related Product
  • We are not responsible for any damages or losses caused by misuse (including but not limited to: misuse, any changes of this battery pack, mis-assembling battery packs)
  • Please never discharge the battery pack beyond its max. rating
  • For safety warning please see the link here
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
