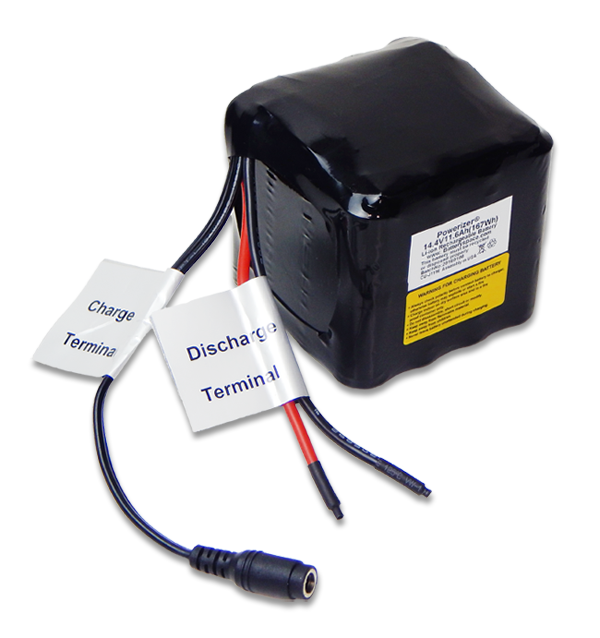

Custom Li-ion 18650 Battery: 14.4V 11.6Ah (167Wh, 30A rate, NCR18650PF)


Your Price: $189.50
In Stock

Product ID # 9874
Part Number:
CU-J1116

Lead Time: 5 Business Day

Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
Voltage:
  • Nominal: 14.4V; Charge Cut off: 16.8V; Discharge Cut off: 10V
Capacity:
  • Nominal: 11.6Ah; Minimum: 11Ah
Protection
Terminal
Charge Current
  • Standard: 5500mA; Max: 11Amp
Discharge Current
  • Max: 30Amp
Dimensions(LxWxH)          74mm (2.9") x 82mm (3.2") x 2.63" (67mm)
Weight       770grams (27Oz)
Temperature       Charge: 10 to 45°C
      Discharge: -20 to 60°C
      Storage: -20 to 50°C

Warnings
California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
