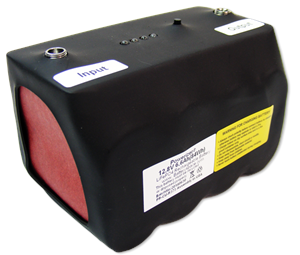

Custom LiFePO4 26650 Battery: 12.8V 6.6Ah (84Wh, 16A rate) with CMB

Your Price: From $114.95 to $129.95
Lead Time: 5 Business Day

Product Options

Output Terminals:


Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
Voltage 12.8 V (working)   14.6 V (peak)  10.0 V ( cut-off)
Capacity 6.6 Ah  (84.5 Wh)
energy density 85.33 wh/kg
Cycle Life    > 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection
  • One CMB installed (locate on the side) of battery pack and protects the battery from
    • Overcharge (> 15.6V)
    • Over discharge  (<9.2 V)
    • Over drain ( >16 Amp)
    • Short circuits
Terminal Options PR-CU-R373: Input and output 5.5x2.5mm plug on the battery
PR-CU-R373-V1:
  • Input Terminals: 5.5 x 2.5mm socket
  • Output: 3" cable with 5.5X2.5mm male connector
PR-CU-R373-V2:
  • Input Terminal: 3" cable with 5.5X2.5mm female connector
  • Output: 3" cable with 5.5X2.5mm male connector
Charging rate 3.0A Max
Max. Discharging Rate 16A limited by CMB Max.
Dimensions(LxWxH) 105mm x 65mm x 70mm
Weight   1LB 11Oz (762g)

Warnings

Please click Knowledge on LiFePO4 battery to learn more detail
