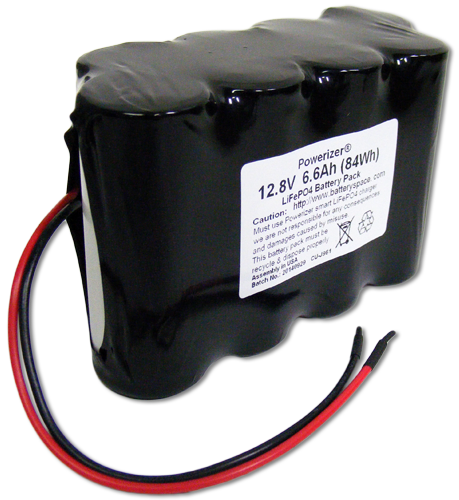

Custom LiFePO4 26650 Battery: 12.8V 6.6Ah (84Wh 16A rate, 2x4S/S offset, 26650-3300)


Your Price: $120.00
In Stock

Product ID # 9007
Part Number:
CU-J961

Lead Time: 5 Business Days / Hazmat handling fee required*

Features

*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Packing
Voltage     12.8V (working)   14.6V ( peak)  9.2V ( cut-off)
Capacity 6.6 Ah   or 84.48 wh
Prewired Charging/Discharging Terminals: 6.0" 18AWG open end wires
Protection
  • 1x PCM (12A limit)with balance function installed with the battery pack to balance and protect battery from
    • Over-charging beyond 15.6V
    • Over-discharge below 9.20V
    • Over-drawn beyond 12A
Note: Pasive balancing only perform during charging and no load is connected to the pack.
Cycle life > 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Max. Discharging Rate 12A Max. limited by PCM
Dimensions(LxWxH) 4.8" (123mm) x 2.3" (58mm) x 2.8" (70mm)
Weight 710 grams (26 oz)
