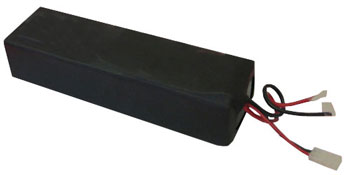

Custom High Power Polymer Li-Ion Battery: 29.6V 21Ah (1055275-2C, 621.6 Wh, 20A rate)*

Option 1: 14 AWG wire without connector
Option 1: 14 AWG wire without connectorOption 2:  with tamiya male connectorOption 3: with Anderson connector, Red = Positive, Black = Negative
Your Price: From $600.00 to $630.00
Lead Time: 5 Business Days

Product Options

Charging Terminal:
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Voltage       29.6 V (working)   33.6 V ( peak)   20 V ( cut-off)
Capacity       21 Ah   (621.6 wh)
Cycle life       >300
Protection One PCM with balance function (20A limited) located on 280mm x 87mm top plane is installed with the battery pack to protect battery from
  • Over-charging beyond 4.25V/cell
  • Over-discharging below 2.50V/cell
  • Over-drain beyond 20A
  • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
  • Option 1: PR-CU-R231
    • Charging: 4" long 14 AWG wire only, no connector
    • Discharge: 16" long 12 AWG wire only, no connector
  • Option 2: PL-1055275-8S-TM
    • Charging: 6" long 14 AWG with tamiya male connector
    • Discharge: 16" long 12 AWG wire only, no connector
  • Option 3: PR-CU-R322
Max. Discharging Rate     20 Amp Limited by PCM
Dimensions (LxWxH)

    11.0"(280mm) x 3.7"(87mm) x 78mm(3.0")

Weight     2870 gram  (6.0Lbs 5.2Oz)
