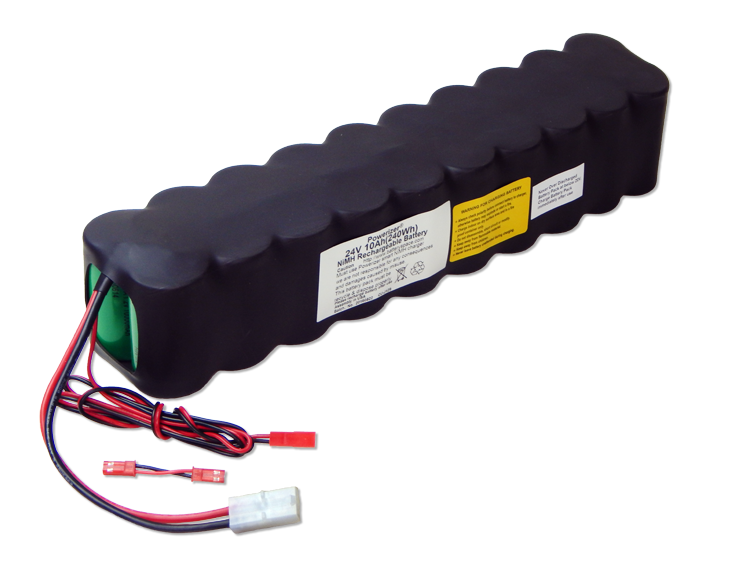

Custom NiMH Battery Pack: 24V 10Ah (240Wh, 9A rate, 2x10xD, MH-D30)

Your Price: $254.95
In Stock

Product ID # 4661
Part Number:

Lead Time: 5 Business Days

Quantity Discounts

25 to 50$242.20
51 to 100$229.45
101 to 500$216.70
  • 24V 10Ah NiMH battery pack consist of 20 pcs High quality D size NiMH 100000 mAh Cells packed in 10x2R configuration with a 9A Polyswitch and a 70C thermistor
  • Heavy Duty Shrink Tubing -- provide extra protection for the battery pack.
 Voltage     24V ( working )    ( 29V at peak)
 Capacity     10000mAh  ( 240 wh)
Energy Density     62.5Wh/kg
 Charging current     1.8 A standard   5.0 A max.
 Discharging rate
  • Max discharge is 9A protected by a 9A polyswitch (RUEF900)
 Dimension (LxWXH)

     13.5" (343mm) x  2.1" (68mm) x  2.5 " (64mm)

 Weight      7.7Lb (3492 grams)

 Related Product


  • Please don't over discharge the NiMH battery pack below 1.0V / cell
  • Charging battery from charging terminal only
  • Charging battery pack after use for longer storage life
  • Always check for correct polarity before connecting battery to your device
  • Please see the safety warning for NiMH battery
