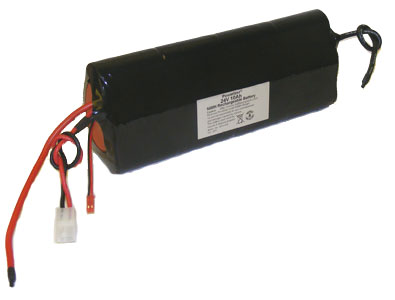

NiMH Rechargeable Battery: 24V 10Ah (240Wh, 5x4xMH-D50) with 70C thermistor


Your Price: $276.00
In Stock

Product ID # 6447
Part Number:
CU-J571

Lead Time: 5 Business Days

Quantity Discounts

QuantityAmount
25 to 50$262.20
51 to 100$248.40
101 to 500$234.60
 Battery
  • Custom 24V 10Ah NiMH battery pack consist of 20 pcs High quality D size NiMH 10Ah Cells packed in 5R x 4 configurationwith 70oC thermistor
  • Each Row is make up of 4 cells in a End to End configuration. A total of 5 Rows of cells.
  • Thin shink tubing to shrink wrap each row, then shrink wrap the whole pack in pyramid configuration.
 Voltage     24V ( working )    ( 29V at peak)
 Capacity     10Ah  ( 240 wh)
 Charging current     1.8 A standard   5.0 A max.
 Discharging rate
  • Max discharge is 50A
 Protection
 Pre-wired
  • Charging terminal (on positive side of battery): 5.0" 14AWG wire with standard Male Tamiya Connector.
  • Discharge terminal:
    • Positive side with 6.0" 10AWG Red open end wire
    • Negative side with 6.0" 10AWG Black open end wire
 Dimension (LxWXH)

     9.6" (244mm) x  2.7" (68mm) x  4.0" (102mm)

 Weight      8.0Lbs 13 Oz (3300 grams)

 Tips



 Cautions

  • Please don't over discharge the NiMH battery pack below 1.0V / cell
  • Charging battery from charging terminal only
  • Charging battery pack after use for longer storage life
  • Always check for correct polarity before connecting battery to your device

Notes

Things to know about Nimh Batteries
