Custom NiMH Battery Pack: 14.4V 26Ah (374 Wh)

Your Price: $504.40
Call to order

Product ID # 6640
Part Number:
CU-J653

Lead Time: 5 Business Days


Quantity Discounts

QuantityAmount
25 to 50$479.18
51 to 100$453.96
101 to 500$428.74
Battery

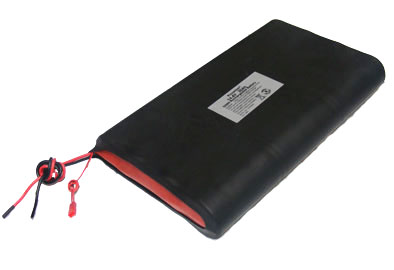

  • Custom 14.4V 26Ah battery pack is made by 12 pcs high quality NiMH 26 Ah M size cell packed in 4Rx3C cells. Wrapped by heavy duty heat shrinkable tube
Voltage      14.4 V ( working )    17.4 V ( peak)
Capacity      26Ah   or  374 wh
Charging Rate      Standard 2.6A     Max. 5.2A
Discharging Rate

     Max. Discharge is 52A

Prewired
  • 2 x 10.0" (254mm)16AWG open end wire
  • Black - Negative
  • Red - Positive
  • 1 x 6.0" 70oC thermistor
Dimension (LxWxH)        11.0" (280mm) x 6.7" (170mm) x 1.8" (46mm)
Net Weight        11lbs 15.4Oz (5430g)

Smart Charger

Related Products
Cautions
  • Please don't discharging the battery pack below 10V  ( 1.0 V / cell)  Deep discharging may damage NiMH battery pack.
  • Charging battery immediately every time it is discharged.
  • Always check the polarity before connect to device or charger.
  • Please read more safety warning
Notes Things to know about Nimh Batteries
