LCD Monitor for Battery Pack with SMBus Port (#5171)


With JST XHP-4 Connector
Your Price: $60.00
In Stock

Product ID # 5171
Part Number:
PCM-LCD

Feature:
This LCD monitor works together with protection board with SMBus Port, it can show
  • Page 1
    • Voltage: Battery pack voltage
    • Current: Battery current draw
    • RemCap: Remain Capacity
    • Temp: Battery temperature

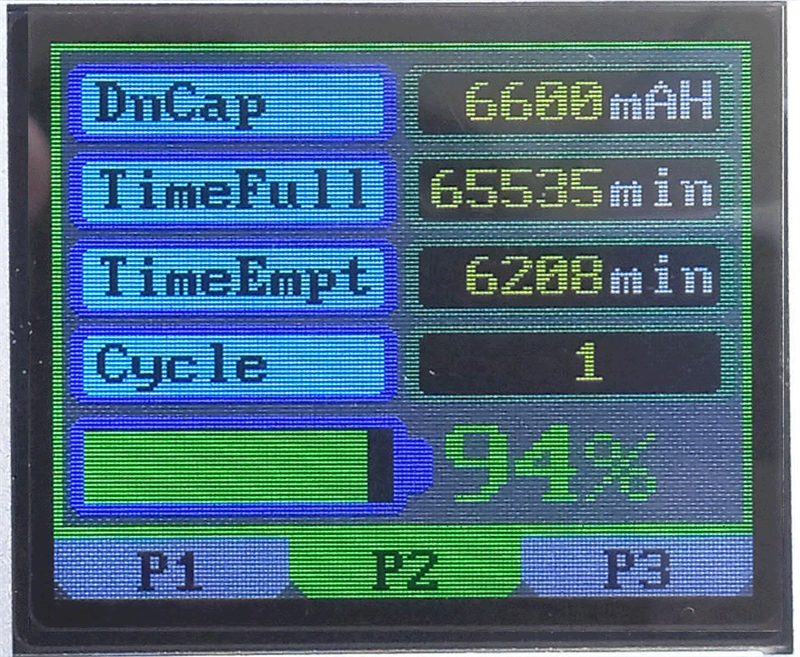

  • Page 2
    • DnCap: Designed capacity
    • TimeFull: AverageTime to Full
    • TimeEmpt: AverageTime to Empty
    • Cycle: Number of Cycles

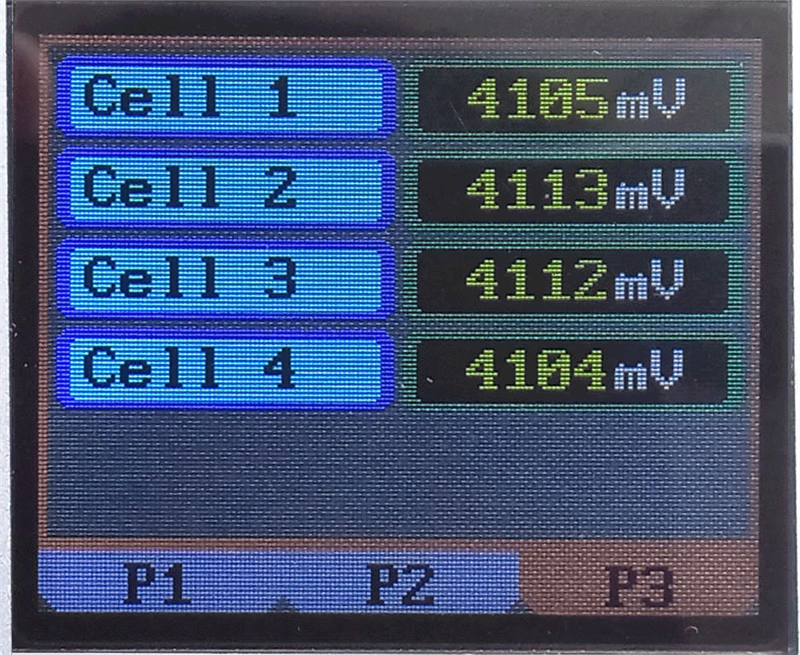

  • Page 3
    • Cell #: Each cell's voltage
Operation:
1. Connect LCD monitor to battery.
2. Press and Hold 'On/OFF' to turn LCD monitor on
3. Press PU/PD view battery's information. PU:page up; PD: page down
4. Make sure to press and hold 'On/OFF' butoon to turn off the monitor before unplug the battery
5. Unplug from the battery.

Terminal:
JST-XHP4 pins female,
  • Red    ----------   Pin 1 = +
  • Yellow ---------    Pin 2 = SMBD
  • Green ---------    Pin 3 = SMBC
  • Black  ---------    Pin 4 = GND

Dimension: 4" x 2-1/4" x 1-1/8"
Weight: 4oz
