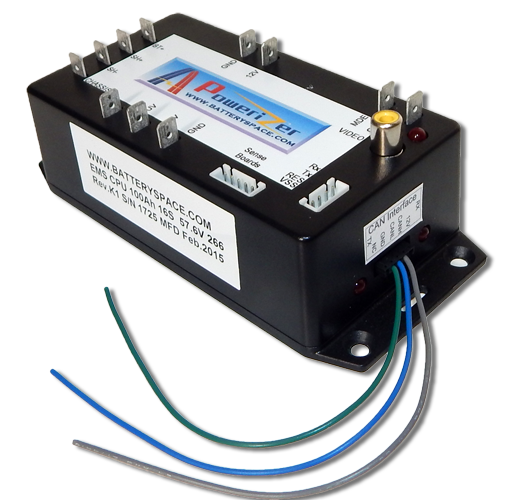

BMS Master Module for LiFePO4 Battery Pack (#9268)


Without Can BusWith Can Bus
Your Price: $200.00
In Stock

Product ID # 9268
Part Number: BMS-CPU

Lead Time: 1 week

Personalizations

* denotes required field

Voltage of whole system*
Capacity of whole system*
Number of cells in the whole system (same as sense board quantity)*
Communication*
Temperature Setting*
What is maximum continous discharge current (Support upto 500A)*
Slave module version*
Add to a new shopping list

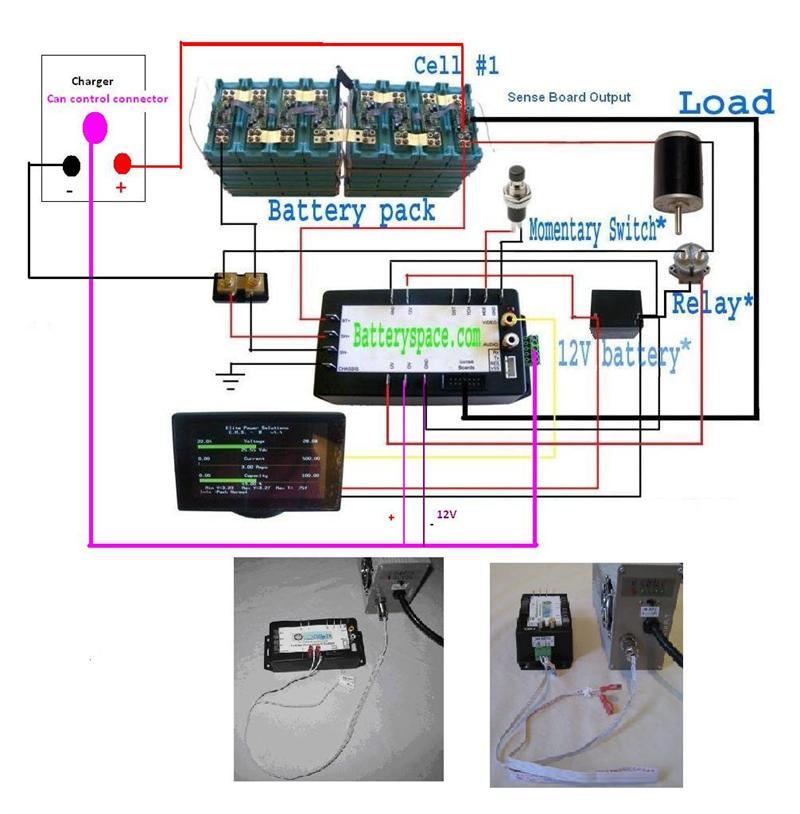

The Master Module functions are:
  • Communicate with each Slave Module on monitoring the max/min voltage, max/min current and temperature & perform balance function on each cell.
  • Provide all necessary Data to Display on the LCD Display
  • Provide connection to the Shunt to measure the current
  • Provide connection to the momentary switch to change the information being display on the LCD Display
  • Provide signal to open the Discharge Relay, Charge Relay (if not use with a CANbus charger) to protect the battery pack from over charge, over discharge or high temperature
  • Provide connection to a CANbus charger ( no charge relay will be need!)
  • Provide option of MODBUS
  • Master Controller Module (Size 146 x 68 X 50 mm)
