Battery Analyzer / Cycler: one channel (100V 10A) with Temperature Measurement, Laptop & Software


Your Price: RFQ
Out of stock

Product ID # 3907
Part Number:
BA-100V10A

Personalizations

* denotes required field

Computer*
BA-100V10A is a one channel battery analyzer which suitable for most applications in battery testing fields such as battery performance & cycle test, battery capacity test, battery charging & discharge test, protection capability during over-charge, over-discharge and etc. The purchase comes with a brand new laptop with Microsoft Windows with 30 days free trial Microsoft Excel and the latest version of controller software installed and calibrated for immediate use.

SPECIFICATIONS

Requirement

  • 220VAC±10%,  50/60Hz
  • For 110V, a 1500W Transformer will be included
  • Working Temperature: 10-45°C
  • Environment humidity: ≤ 85% RH

Power Consumption

  • 1300 W Max

Channel

  • 1 Channel

Current

  • Range: 10A programmable
  • Accuracy: ±(0.1% FS + 0.1% RD)
  • Resolution: 1mA
  • Minimum Discharge current: 20mA
  • Current Start Response Time: <100ms

Voltage

  • Range: 0V - 100V programmable
  • Accuracy: ±(0.1% FS + 0.1% RD)
  • Resolution: 1mV
  • Minimum Discharging Voltage: 5V

Temperature

  • Range: -20°C to 100°C
  • Accuracy: ± 1°C
  • Resolution: 0.1°C

Data sampling/Export File Format

  • Sampling: Time interval: ≥1S; Voltage: ≥1V; Current: ≥1mA
  • Export file format: EXCEL, TXT, Picture

Communication Port

 RS232, USB

Max. measurement cycles

 9999 cycles

Max. program steps

 9999 steps

Product Dimensions


 668mm W x 400mm D x 130mm H

Test Modes

  • Working modes Include:
  • Charge: constant current charge (CC), constant voltage charge (CV), constant current constant voltage charge (CCCV), constant power charge (CP),  floating charge,
  • Discharge: constant current discharge (CD), constant power discharge (CP), constant resistance discharge (CR)
  • Rest & cycles
  • Testing stop setting: By Time, Voltage, Current, Capacity, -ΔV, Vcell, RSOC.

Programs & Software

Real-Time Mornitoring

  • The software is included to set various working modes for evaluating cell capacity and life cycle for all types of rechargeable batteries
  • Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc.

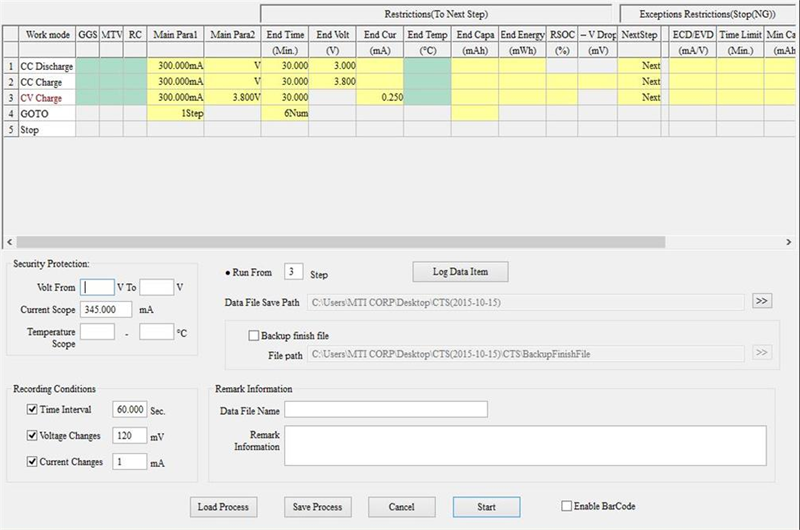

  • With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently
  • During the test, the software will provide instructions and warnings for assistance
  • MS Excel 30 days free trial is pre-installed for you to output the Excel data file.

Test Reports and Curvers for Analysis

  • Various curves can be created by software base on user definition. (Voltage-time curve, current-time curve, capacity-voltage curve, loops times-charge/discharge capacity curve, loops times-charge/ discharge efficiency curve, etc)
  • Data reports are created by software (export to Excel or .txt). User can easily compare the performance of the batteries tested in channels both visually and statistically

DCR Testability


 The DCR Testing feature enables the Hybrid Pulse Power Characterization (HPPC) of the battery. Such function also provides the max/min voltage and current protection.

Temperature Measurement & Battery Clips

  • Each channel has a thermocouple for monitoring and recording the temperature of the batteries over the testing cycle.
  • 4 pairs of alligator clip battery connectors for universal connecting.


Protection and Auto-recover

 If a power failure occurs during testing, the system will shut down all operating channels. Once power is recovered, the system will automatically resume those stopped channels and ensure that the test is normally conducted, so that no cases will lose any data.


Laptop Computer
  • Brand new laptop with MS Windows, MS Excel 30 days free trial is included and latest version testing software are installed and calibrated for immediate use
  • Up to 20 sets of analyzers can be simultaneously controlled by one PC
  • Notice: We strongly suggest you use an external hard drive to keep an instant backup of the collected data.

Compliance

  • CE Certified
  • Safety Standard: EN609050, GB4943
  • MET, TUV, CSA, UL certification are available upon request with extra cost

Warranty

Two years limited warranty with lifetime support for the battery analyzer. (Note: BatterySpace.com does not carry warranty for the Laptops. In this case service is needed for the laptops, please contact laptop manufacturer directly for warranty/non-warranty service.)
Application Notes
  • Support channels in Parallel. For example, you can parallel two units of 100V10A to get 100V20A output, with upto 4 units in parallel usage.
  • If you like to run multiple battery analyzers on one Laptop, you can just buy multiple analyzers with one laptop. $300 will be deducted from the sales price if one analyzer is purchased without the basic laptop.
  • Up to 20 battery analyzers can be controlled via one computer & software.
  • Warning: Please do not choose Screen and Sleep mode setting in Windows, or it may lose connection from battery analyzer.
Net Weight  20 Kg (44 lbs)
Shipping Weight  Analyzer only: 50 lbs / Complete set: 60 lb
Shipping Dimensions  Analyzer only:

Standard Package:
Item Description Qty
1  Battery analyzer & new laptop with battery analyzer operation software installed 1 pc
2  Data transfer adapter & cable for connecting the analyzer to USB port on computer 1 pc
3  Testing software Installation disk 1 pc
4  Alligator clips for connecting battery 2 pcs
