Automatic Vibration System for Max. 300kg exciting force (UN38.3.4.3)

Your Price: RFQ
Please email for lead time

Product ID # 7868
Part Number:
BS-046



BS-046 is updated model from BS-004.  It  is a compact computerized Vibration Testing System for Li-Ion battery and battery pack up to 200Hz based on UN38.3 standard (38.3.4.3), which integrates computer and all control units into one box with less stand foot.

SPECIFICATIONS

Testing Sample Requirement
  • For battery
    • LxWxH ≤ 400x400x400mm
    • Total Weight (including fixture) ≤ 10 Kg

Power Requirement
  • 208-230VAC, three phase, 50/60Hz
  • 15KW

Vibration Table

Click below  to learn hiw to calculate Max. sample load


  • Vibraton platform size:                 400mm×400mm
  • Vibration table size:                      750mm x 560mm x720mm
  • Sin-wave force:                            300Kg Max
  • Random-wave force:                    300Kg Max
  • Frequency range:                          2~ 200Hz
  • Frequency of vibration isolation:     2.5Hz
  • Max. Acceleration (No load):        100 G /17G (with test platform)
  • Max. Speed:                                1.6m/s
  • Max. displacement:                      25 mm (peak to peak) (measured under the no-load condition)
  • Moving coil weigh (Mo):                3 kg
  • Moving table weight:(M1):            10Kg
  • Max. sample Load at 10g:             10kg  ( including fixture)
  • Max. sample Load at 8g:               15Kg  ( including fixture)
  • Max. sample Load at 2g :            102kg ( including fixture)
  • Vibration direction:                        Vertical

  • Total Vibration table weight:           460 Kg
  • One forced air cooling blower is included ( see picture below )
Control Unit
  • Exquisitely designed control tower has a computer and monitor screen integrated internally for minimal space occupation & ease of use
  • Software pre-installed on computer for immediate operation and offers intuitive features for direct perception
  • Vibration Settings:  Shock, Sin-Wave or Radom selectable
  • Programable Shock Parameters
    • Wave types:             Half Sin-Wave, Zigzag, Retangular, Ladder-Shaped, and etc.
    • Frequency range:    DC - 22000Hz
    • Duration time:         0.5 - 3000mS

Venting

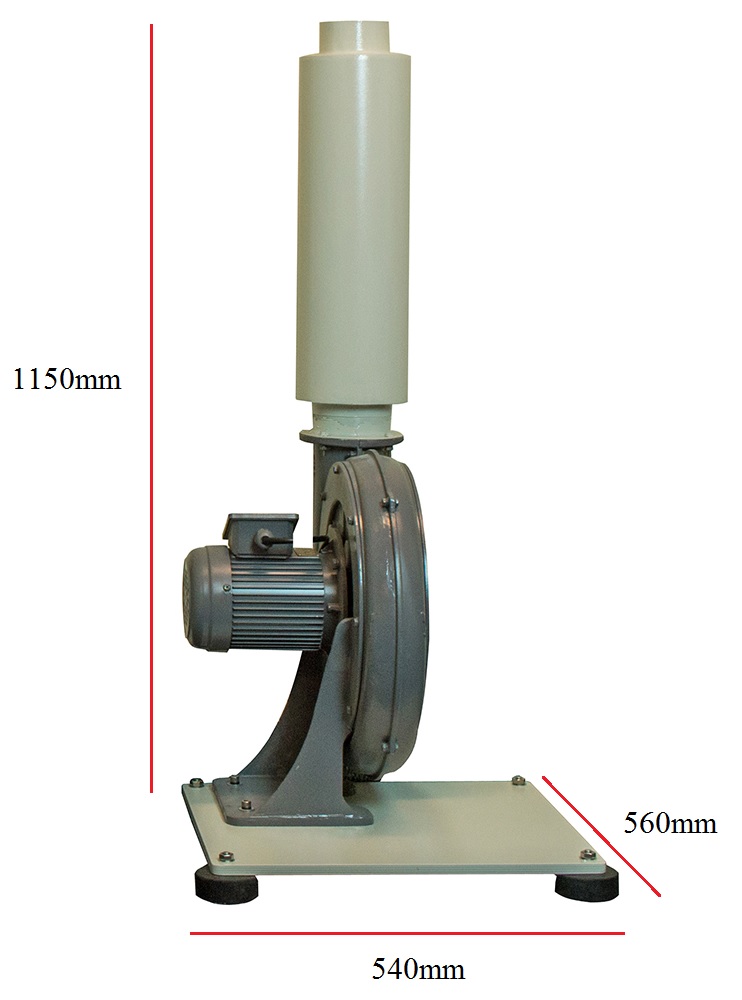

  • Venting blower (180W) is included
  • Venting port size:  120 mm diameter
  • Air flow rate:          0.40m^3/ s
  • Venting is required for complete operation

Calibration

Warranty
  • One year limited manufacturer's warranty with lifetime support; extended warranty available upon request at additional cost.
  • On site installation and trainning for UN38.3 are avaiable at extra cost
Shipping Weight & Dimensions
  • Control Unit: 700LB, LxWxH: 37.5"x28"x73"
  • 2200LB, LxWxH: 66"X24"X53"
