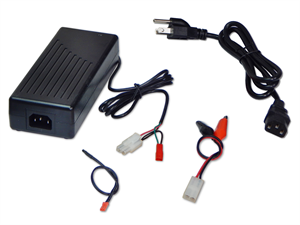

Universal Smart Charger (2A) for 19.2-24V NiMH/ NiCd Battery Packs

CH-UN2420
CH-UN2420CU-J483,  5.5x2.1mm FemaleCU-J324: 30A AndersonPR-CU-R317CH-UN2420FBCU-K130: Mini Female Connector CH-UN2420-V2
Your Price: From $44.95 to $57.00

Product Options

Connector:

Features

Update
  • Product information updated on 8/31/2022
Feature
  • This charger is for charging 19.2V - 24V NiMH and NiCd Battery Packs with 2Ah ≤capacity ≤ 14Ah (16-20 Cells pack)
  • Charging time ( Hrs ) = 1.2x Battery capacity ( Ah) / 2A
Input Voltage 110- 240VAC, 50/60 Hz
Charge current 2Amp
Weight 18 Oz
LED Indicator
  • New Version 2Amp
  • Old Version 2.0A (Manufacture part#SPS-N20S02-254):
    • Click here to download
    • If battery pack is still not fully charged after charger's LED turns Solid green. Reset charger by unplug AC power and recharge battery pack again.
  • Old Version 1.5A (Manufacture part# H02400015-US-D1):
    • Click here to download
    • If battery pack is still not fully charged after charger's LED turns Solid green. Reset charger by unplug AC power and recharge battery pack again.
  • Old Version 1.5A (Manufacture part# H02400015-XX-D1):
    • Click here to download
    • If battery pack is still not fully charged after charger's LED turns Solid green. Reset charger by unplug AC power and recharge battery pack again.
Accessories

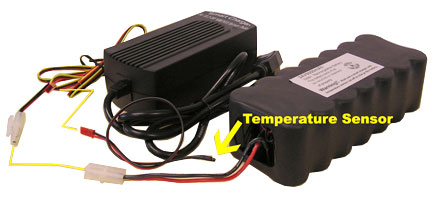

    • The temperature sensor included with the charger must be attached firmly to battery pack. If you don't connect the temperature sensor to battery pack, we are NOT liable for over charging the pack and damage the pack.
    •

    Connector Options




    Warnings

    • The charger is designed for indoor use only.
    • The charger should be horizontally positioned and work in well ventilated condition, avoid wet and keep it away from inflammable explosive goods.
    • Don't cover the charger when charging. Ambient temperature shall not be more than 40 degree C.
    • Don't try to disassemble the charger.
    • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
