Smart Charger (4Amp) for 19.2 - 26.4 V NiMH / NiCd Battery Pack - Superfast Charger -- CE Listed
 CH-UN400 PR-CU-R332: 4 pin XLR Plug CU-CH126: Mini Female Tamyia Plug CH-UN400-V2 CH-UN400-V4:5.5x.2.1mm Female Plug   |
|
Your Price: From $89.95 to $113.95
Product Options
| Connector: |
|
|
Features
| Smart Charger |
For fast charging NiMH Battery pack from 19.2V - 26.4V. Especially for NiMH battery pack with capacity > 4000 mAh |
| Input |
100 - 240V AC for worldwide use |
| Feature |
- Built in IC which can automatically determine NiMH battery pack's voltage and set charging voltage to a correct value
- Built in IC to cut off power automatically when battery is fully charge by minus delta V (-16 mV)
- Built in Cooling fan built in to reducing heat and have longer service life
- CE listed
|
| Charging current |
4 A constant current. |
| Protection |
Built in protection for short circuits and wrong polarity |
| Dimension(LxWxH) |
6.0''(154.5mm) x 3.35'(85.2mm)' x 1.95"(50.3mm) |
| Weight |
1.0 Lb 0.8 Oz ( 0.48 kg ) |
Connector Options
- CH-UN400 Three pins female Cannon plug
- Pin 1 = Positive,
- Pin 2 = Negative / Return Thermistor,
- Pin 3 = Thermistor

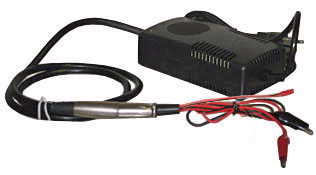

- Included one 3 pin male Cannon plug to alligator clip and temperature sensor plug (BEC male connector) cable.

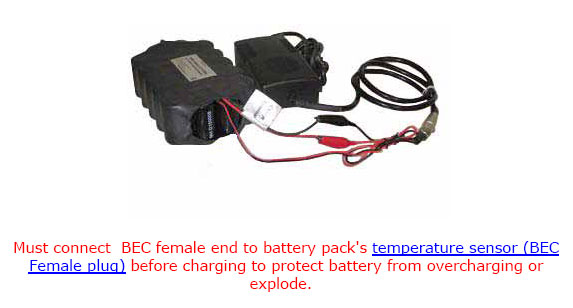

- Included one temperature sensor (BEC female plug) for DIY a 19.2V-26.4V battery pack's temperature sensor terminal , which must be plugged to a charger's temperature sensor plug(BEC male connector)
|

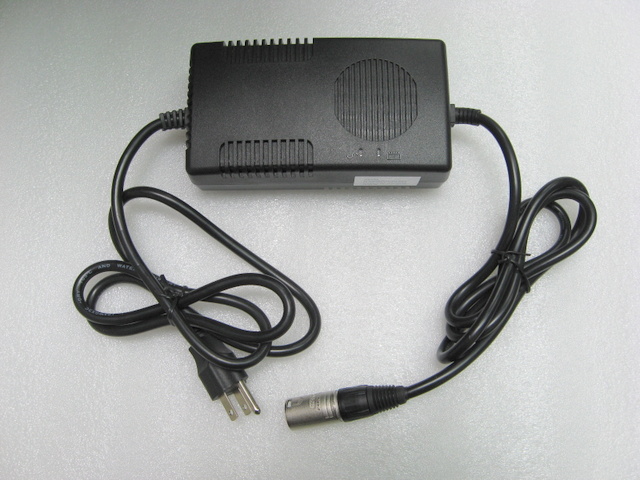

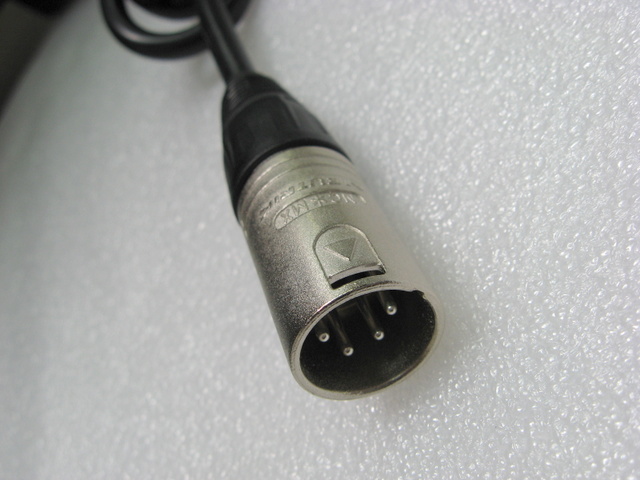

- PR-CU-R332 4 pin XLR connector
- 4 pins male XLR connector, Pin 1=(-), Pin 2 (+), Pin 3 & 4=temperature sensor.
  |
|
|
|
|
|
|
|
|

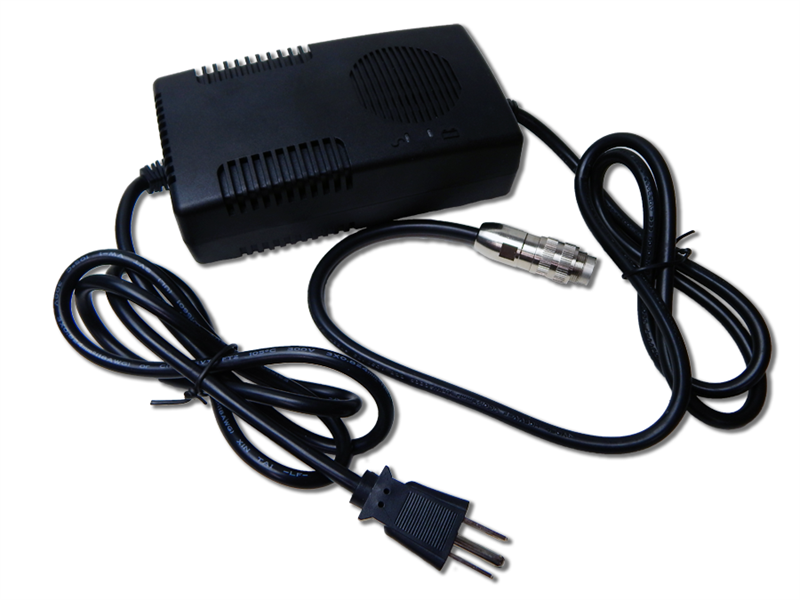

- CH-UN400-V5: Lumberg 033207
- Pin 1, Pin 2, Pin 3, Pin 7 :- Positive terminal.
- Pin 4 :- Battery Thermistor.
- Pin 5, Pin 6 :- Ground
|
|
|
Please download the Specification here
Warnings
- Please plug in AC power first, then connect the battery to the charger, otherwise, there is no output from the charger.
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
|
