Smart Charger (10A) for 12.8V LiFePO4 Rechargeable Battery Pack - CE Listed

ratingratingratingratingrating
Your Price: From $75.95 to $122.95

Product Options

Output terminal:


Features

Feature

  • Picture and specification updated on 12/11/2020
  • Designed for 4S LiFePO4 rechargeable battery with capacity ≥ 10Ah
  • For Battery Voltage: 12.8V
  • CC-CV Charging mode
  • USA AC Plug
  • Input Power:
    • 100Vac-120Vac, Maximum: 6Amp or
    • 220Vac-240Vac, Maximum: 3Amp
  • Output Power: 14.6V DC±0.2V, Maximum: 10Amp

Safety Protection

  • Output short circuit protection:
    • Can reset the charger by unplug AC power cable.
  • Over temperature protection:
    • When cooling down, the charger will auto recover.
  • Low voltage protection:
    • If battery’s voltage is <8.76V, the charger will not charge the battery
  • Over voltage protection:
    • If the output voltage is >14.6V±0.2V, the charger will stop working
  • Wrong polarity protection

LED

  • Solid Green: Connect to AC outlet, without connect to battery
  • Solid Red: Charging
  • Solid Green: Fully charged/trickle charge

Temperature

  • Working Temperature: -20°C to 45°C
  • Storage Temperature: -20°C to 85°C

Dimension

LxWxH: 6.1x3.5x2 inch (155x90x51mm)

Weight

2LB 3oz

Specification



Connector Options

CH-LF12810A: Alligator Clip
PR-CU-R235: Anderson

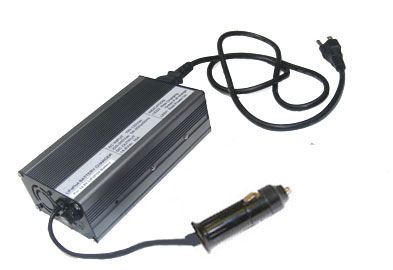

CU-J205: Male Cigarette lighter (15A)

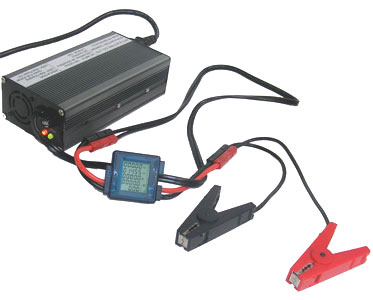

CH-LF12810WU: With Watt-Meter

Warnings

  • Must connect charger to AC power before connect to battery pack. Otherwise, the charger will NOT charge the pack and you will not get a RED LED indicate charging.
  • Please unplug the power cable from the battery after fully charged. Because this charger has a 0.7A floating charge current.
  • AC plug must be reset if disconnect battery > 3min
  • Note: this charger has a fuse holder on it. However, it is NOT being used!
  • Only charge LiFePO4 battery pack with capacity > 10000 mAh. Don't use the charger for lower capacity battery pack.
  • Only charge LiFePO4 battery pack with voltage 12.8V (4 cell pack). Don't use the charger for Lower voltage battery pack
  • Indoor use only
  • Don't remove the case to prevent from electric shock
  • Unplug the charge from AC outlet after use.
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
