Smart Charger (1.8A) for 3.7V Li-ion/Polymer Rechargeable Battery Pack -

With 5.5mmx2.1mm Barrel Female PlugWith 5.5mmx2.5mm Barrel Female PlugOption 4: CU-J1060 with Male BEC connectorCU-JAS355: Male JST-XHP-3CH-L3718-V2
Your Price: From $19.95 to $32.25

Product Options



  • This smart battery charger designed to charge 3.7V Li-Ion/Polymer battery with capacity ≥ 2200mAh.
  • Automatically cut-off power when battery pack is full at 4.2V
 Input      100 -240VAC 50/60Hz / US AC power plug
 Output      4.2V
 Charging Current
  • 1.8A
  • Charge time = (Ah rate of the pack x 1.5) / 1.8A charge current
 Protection      Reverse Polarity and over charge protection
LED Indicator
  • Red - Charging
  • Green - Fully charged
  • Dim Green/no LED - you are trying to charge a fully charged battery.
    • Solution - discharge/drain the battery first and recharge again.
Dimension (LxWxH)      81mm(3.1") x 52mm(2.0") x 30mm(1.2")
Weight      5.2Oz (150grams)

Please Download the Specification here

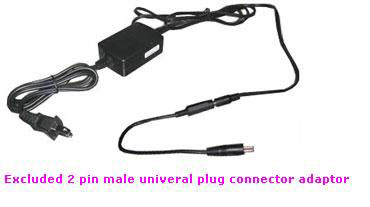

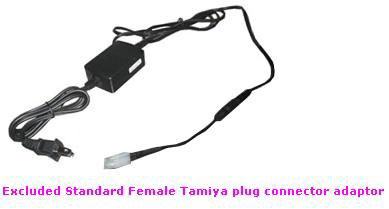

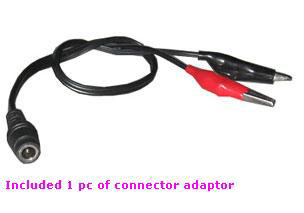

Connector Options


  • Check battery polarity before connecting to charger.
  • This is for 3.7V Li-Ion/Polymer battery with capacity >2200mAh
  • Indoor use only!
  • Do NOT open the cover as it will void the warranty.
  • This charger is for charging rechargeable Li-ion battery with PCB ONLY.
  • One year warranty
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
