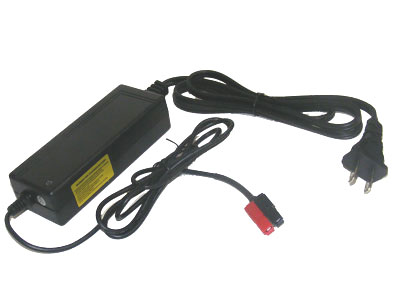

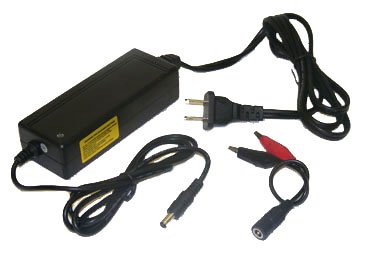

Smart Charger (1.5A) for 12.8 V LiFePO4 battery Pack - CE

CH-LF12815: 5.5x2.1mm Male Barrel plug
CH-LF12815: 5.5x2.1mm Male Barrel plugCH-LF12815-V1: 5.5mm x 2.1mm female barrel JackCH-CH113CH-CH124: Anderson connector (CN-SA3)CH-LF12815-V4: 5.5x2.5mm Female JackCH-LF12815-V5: For Battery 30B145CH-LF12815-V6 5.5x2.5mm Male Plug
Your Price: From $29.99 to $49.95

Product Options

Connectors:

Features

Feature
  • Model: ABT015146
  • 100V-240V AC 50/60hz input for worldwide power support
  • CC/CV charge
  • It can charge any 12V LiFePO4 rechargeable battery ≥ 1500mAh
Input Voltage AC 100-240V  50-60Hz
Output Voltage Not connect to the battery: DC 14.45V-14.75V;
Connect to the battery: DC: 14.6V
Output Current 1.5Amp±0.15Amp;  ≤21.9W
Safety Protection
  • Over current protection
  • Short circuit protection
LED Indicator
  • The charger will cut off automatically if battery is
    • Red LED = In Charging
    • Green LED = Connect to Power or Battery is Full
    • Red LED turning to Green LED = Current < 0.3A or Voltage > 14.6V
    • Red/Green Flash = error
Temperature
  • Working: 0 to 40°C
  • Storage: -20 to 70°C
Dimension 90x48x29 mm
Weight 9.6 Oz
Specification
Certificate CE

Connector Options

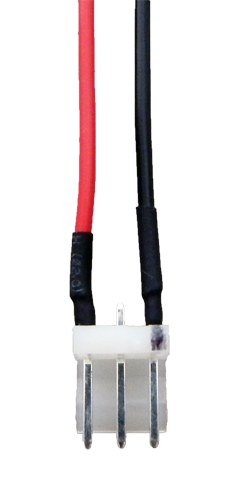

  •  CH-LF12815: 5.5x2.1mm Male Barrel plugCH-LF12815-V5: 9652038, digikey# WM18824-ND   CH-LF12815: 5.5x2.1mm Male Barrel plugCH-LF12815-V5: 9652038, digikey# WM18824-ND


Warnings

  • Charge 12.8V LiFePO4 rechargeable battery only
  • Do not expose the product to rain or humidity to prevent from electric shock
  • It is normal if the product gets slightly hot while in use
  • Keep the product out of the reach of children
  • Do not open the charger and touch any part of the product to prevent from electric shock
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
