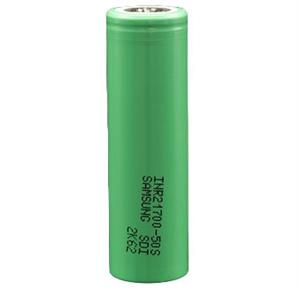

Samsung 21700 Lithium Rechargeable Cell: 3.6V 5000mAh (18Wh, INR21700-50S) - UN38.3 Passed -
|
|
Your Price: We do not sell single cells.
Product ID # 13174
Part Number: INR21700-50S
|
Features
| Battery |
SamSung 21700 INR21700-50S Cylindrical Li-Ion Cell |
| Standard Discharge Capacity |
Typ. 5000mAh
-Charge: 0.5C(2500mA), 4.2V, 0.05C(250mA) cut off @ RT
-Discharge: 0.2C(1000mA), 2.5V cutoff @ RT
1C=5000mA |
| Rated Discharge Capacity |
Min: 4800mAh
-Charge: 1.2C(6000mA), 4.2V, 0.02C(100mA) cut off @ RT
-Discharge: 2C(10000mA), 2.5V cutoff @ RT |
| Charge Voltage |
4.2V |
| Nominal Voltage |
3.6V |
| Standard Charge |
CCCV, 2.5A, 4.20 V, 250mA cut-off |
| Rated charge |
CCCV, 6A, 4.20 V, 100mA cut-off |
| Charging time |
Standard charge : 150min / 250mA cut-off(@ RT)
Rated charge: 100min / 100mA cut-off(@ RT) |
Max. continuous discharge
(Surface temperature) |
25A(Without temperature cut)
45A(With 80℃ temperature cut) |
| Max. charge current |
10A (for step charge)
6A (continuous charge) |
| Discharge Cut-off Voltage |
2.5V (End of discharge) |
| Cycle Life |
1)Capacity ≥ 2,940mAh @ after 250cycles; (60% of the standard capacity @ RT)
-Charge : 6A, 4.20V, CCCV 100mA cut-off @ RT
-Discharge: 25A , 2.5V cut-off @ RT
2)Capacity ≥ 2,940mAh @ after 100cycles; (60% of the standard capacity @ RT)
-Charge : 6A, 4.20V, CCCV 100mA cut-off @ RT
-Discharge: 45A, 2.5V cut-off
(80℃ cut-off, re-discharge release < 50℃) @ RT |
| Retention characteristics |
Capacity recovery(after the storage) ≥ 4,320 mAh
(90% of the rated capacity @ RT)
- Charge : 6A, 4.20V, CCCV 100mA cut-off @ RT
- Storage : 30 days (@ 60℃)
- Discharge : 10A , 2.5V cut-off @ RT |
| Cell Weight |
72.0g max |
| Cell Dimension |
- Height: Max. 70.62mm
- Diameter: Max. 21.25mm
|
Operating temperature
(Ambient) |
- Charge : 0 ~ 60℃
- Discharge: -20 ~ 60℃
|
| Operating Temperature (surface temperature) |
- Charge : 0 ~ 60℃ (recommended recharge release < 45℃)
- Discharge: -20 ~ 80℃ (must re-discharge release < 60℃)
Discharge OTP(over temp. protection) should not be over 80℃ of temperature. Protection set should be based on the location of the cell surface with the highest temp increase part of the battery pack. |
Operating temperature
(For safety certificate) |
|
Recovery 90% after
storage |
- 1 year: 0 ~ 25℃
- 3 months: 0 ~ 45℃
- 1 month: 0 ~ 60℃
If Cell is kept as ex-factory status (30% of charge), the capacity recovery rate shall be more than 90%. |
Please download the Specification here
Warnings
- Li-Ion Batteries may explode if charged or discharged improperly.
- Please possess knowledge of electronics and understand how to handle Li-ion battery.
- Please always use a protection circuit board (PCB) to keep battery from overcharged and over-discharged
- Never solder directly onto the Li-ion battery as overheat might damage the battery. If you are making a pack or need to solder batteries together, you need to get battery with tabs on it. You will solder to tabs instead directly onto the battery.
- Please read more safety warning about Li-ion battery
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
|
