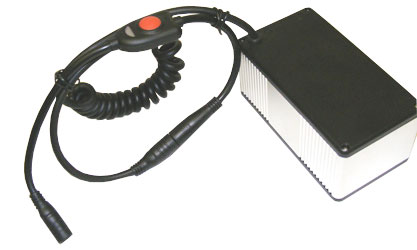

Polymer Li-ion Box Battery: 13.2V 5Ah (74Wh, 2.0A rate, 7250115-2C) with regulator (6.0)


Your Price: $169.95
In Stock

Product ID # 6026
Part Number:
PL-B7250115S4R-TT

Lead Time: 5 Business Days!
*Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Packing

Voltage Regulated 16.0 --- 13.2V 2A Max (working) by Smart Waterproof on-off switch with LED Indicator 11.0V ( cut-off)
Capacity 5000 mAh (74 wh)
Protection
  • One PCM with balance function(10A max.) is installed with the battery pack to protect battery from
    • Over-charging beyond 4.25V/cell
    • Over-discharging below 2.75V/cell
    • Over-drain beyond 10A
    • Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
  • One pcs of 7Amp polyswitch is installed to limit max. discharging current and to protect wrong polarity
Pre-wired

  • Excluded Trial-Tech Coasxis Male plug, please click here to buy separately.
  • It is used for connect to the light by yourself if the light connector won't match our Trail-Tech Female plug's battery.
Max. Discharging Rate  2.0 Amp limited by Smart Waterproof on-off switch with LED
Dimensions 125mm(4.9") x 67mm(2.6") x 60mm(2.4")
Weight

1.5lb ( 698 grams)

Smart Tips
Applications
  •  13W Trail-Tech HID light system
  • 12V Bike light system with 2.0A Max current drawn
Warning
  • Li-Ion battery may explode if misused. We are not responsible for any damages or losses caused by misuse (including but not limited to improper charging/discharging, any changes of this battery pack, mis-assembling battery packs).
  • Always charge battery with attention. Battery pack shall be placed in a fire-proof place to avoid any accidents.
  • Please check battery polarity before plugging battery into light. Never make wrong polarity connection.
  • For safety warning please see the link here
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
