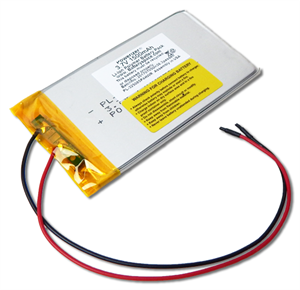

Polymer Li-Ion battery Pack: 3.7V 1550mAh (5.7Wh, 3A rate, 325085-2C) - UN38.3 Passed


Option 2: with BEC Female Connector,Part Number: CU-JAS148-V2
Your Price: From $16.25 to $26.95
Lead Time: 5 business days to build !

Product Options

Connectors:

Features

Battery
Voltage         3.7V
Capacity         1550mAh
Protection
  • 1x PCB installed for protects the battery from
    • Overcharge / Over discharge / Over drain / Short circuits
Terminal Option & PVC
  • PL-325085P4HWR:
    • 6" 24AWG open end wires; no PVC shrink wrap
  • CU-JAS148:
    • 4.5" 22AWG wires with BEC Female Connector
    • wrapped by thin white PVC shrink wrap
  • CU-JAS148-V2:
    • 5" 22AWG wire with Molex 22-01-3027; P1 = positive, P2 = Negative
    • wrapped by thin white PVC shrink wrap
Charge Current
  • Standard: 310mA
  • Maximum: 1300mA
Discharge Current
  • Standard: 310mA
  • Maximum: 3000mA
Dimensions(LxWxH)
  • Option 1: 3.4" (86mm) x 2.0" (52mm) x 0.13" (3.3mm)
  • Option 2: 3.4" (86mm) x 2.0" (52mm) x 0.17" (4.5mm)
Weight
  • Option 1: 1.1 oz. (31g)
  • Option 2: 1.3 oz  (36.8g)

Warnings

Please click Knowledge on LiFePO4 battery to learn more detail
California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
