Polymer Li-Ion Rechargeable Battery :14.8V 20Ah (296Wh, 20A Rate, 9059156-1C)
|
|
In Stock
Product ID # 3830
Part Number: HLPB-9759156C-4S2P-FG
Lead Time: 5 Business Days
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $446.20 |
| 21 to 50 | $437.00 |
| 51 to 100 | $427.80 |
| 101 or more | $414.00 |
|
|
Features
| *Important Shipping Regulation |
This pack is for testing (prototype) only. It has not been UN38.3 tested yet. Read more... |
| Packing |

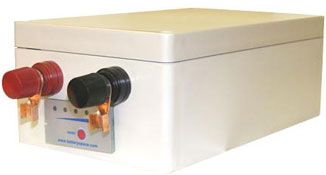

- Made of 8 pcs Polymer Li-Ion Cell: 3.7V 10 Ah in 4S2P configuration
- Installed in Plastic Enclosure (Box-10-22)
- 1x Fuel Gauge for PCB of 14.8v Li-Ion Battery Pack (4 cells pack) installed on surface of battery pack
- Touch the switch on the display , you can monitor the energy level of battery pack
|
| Voltage |
14.8v (working) 17.4 V ( peak) 9.6V (Cut-Off) |
| Capacity |
20 Ah (296 wh) |
| Prewired |
- Charge/Discharge terminal: Copper Barrel Lug terminal attached via Binding Post
- Barrel Lug terminal size: 0.6"(14mm) L x 0.3" (8mm) W x 0.04" (1mm) H
- Binding Post size: 0.8"(19mm) Dia x 1.2"(30 mm) L
- Red Binding Post = Positive
- Black Binding Post = Negative
|
| Protection |
- 1x PCM with balance function installed with the battery pack to protect battery from
- Overcharging beyond 4.35V/cell
- Over-discharging below 2.40V/cell
- Over-drain beyond 20A
- Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
|
| Cycle life |
> 300 |
| Max. Discharging Rate |
20Amp limited by PCM |
| Dimensions(LxWxH) |
- 232mm (9.2") x 120mm (4.8") x 3.0"(75 mm)
- L is the length with Binding Post's length
|
| Weight |
4.7Lb (2134 grams) |
Warnings
- Wrong polarity will damage the charger, Batteryspace is not responsible for the damage or losses caused by misuse
- Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misuse
- Please never discharge the battery pack beyond its Max. rating
- Must read before place an order. Please download fill the form and fax back to 510-439-2808. Attn: BatteySpace-Tech.
- For safety warning please see the link here
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
|
