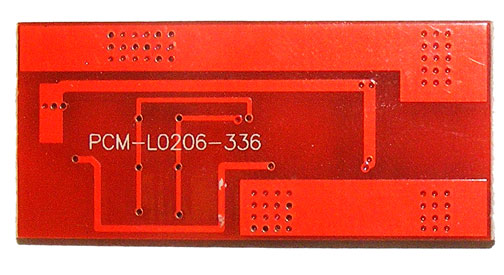

Protection Circuit Module (PCM) with Equilibrium Function for 2S (6.4V) LiFePO4 Battery Pack at 7A limited (#6011)
|
|
In Stock
Product ID # 6011
Part Number: PCM-LFP6.4V8A
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $5.33 |
| 21 to 50 | $5.22 |
| 51 to 100 | $5.11 |
| 101 or more | $4.95 |
|
|
This protection circuit is specially designed for 6.4V Li-Ion Battery pack with 7A discharging rate. Different than normal PCB, it provides equilibrium function after battery pack is fully charged. PCM will detect each cell's voltage and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps Li-Ion cells have longer service life.
| Protection Circuit Module Specifications For 6.4V LiFePO4 Battery Pack |
| Model: PCM-LFP6.4V8A |
| Over-charge protection voltage |
3.90±0.025V |
| Over-discharge protection voltage |
2.00±0.05V |
| Over-current detection protection |
17±3A |
| Maximal continuous Discharging current |
7A |
| Maximal Current consumption |
25uA |
| Protection circuitry resistance (B- TO P-) |
≤30mΩ |
| Dimension |
40mm(1.6") x 18mm(0.7") x 3.0mm(0.1") |
| Weight |
0.3Oz (8.5 grams) |
| P+/P-/BM |
P+ = Charge+ / Discharge +
P- = Charge- / Discharge -
BM = Battery Common
|
| Specification |
Download Specification |
For other PCM/PCB, please check our PCM/PCB/BMS/CMB/UPS category
Warning
- If you want to use this protection circuit board for a battery that is less than the rated drain, you must add additional protection device to protect the battery itself. Such as: proper rated polyswitch.
- To achieve balance, each cell in battery pack must has equal voltage within tolerance. When charger LED turn Green, allow 30 minutes for pack to balance before use.
- You must be professional in Lithium battery pack to buy the protection circuit board. Misusing may cause battery damage or explode. We are not responsible for any damage caused by user.
|
