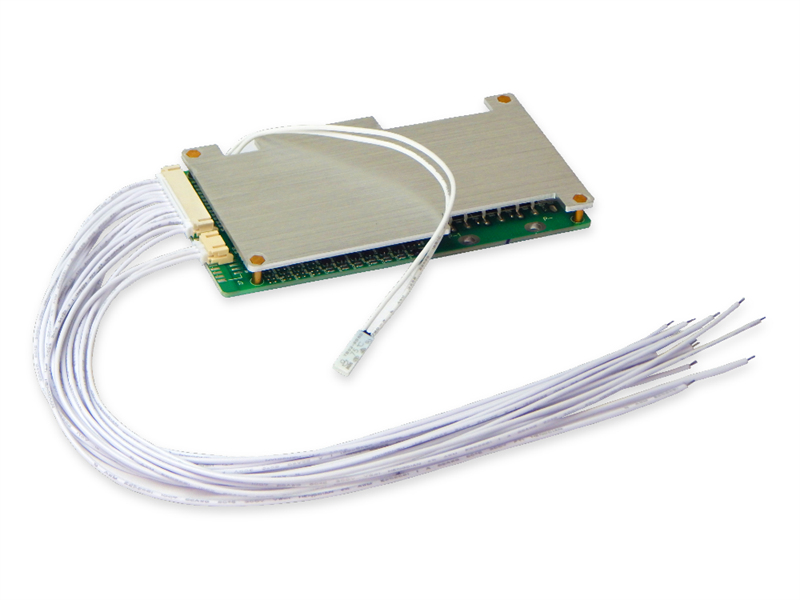

Protection Circuit Module (PCM) with Equilibrium Function for 16S (51.2V) LiFePO4 Battery Pack at 20A limited (#3076)
|
|
In Stock
Product ID # 3076
Part Number: PCM-LFP16S20A
|
|
Item
|
Terminals
|
Nominal value
|
Unit
|
|
Maximum Charge voltage
|
B+，P-
|
57.6
|
V
|
|
Continue charge current
|
B+，P-
|
<21
|
A
|
|
Continue discharge current
|
B+，P-
|
<21
|
A
|
|
Input voltage for terminals
|
B1,B2,B3,B4,B5,…. B15
|
5
|
V
|
|
Internal resistance
|
B-，P-
|
<5
|
mΩ
|
|
Work temperature
|
-
|
-20 ~ +90
|
°C
|
|
Storage temperature
|
-
|
-40 ~ +125
|
°C
|
|
Work humidity
|
-
|
<75
|
%RH
|
|
Storage humidity
|
-
|
<85
|
%RH
|
|
Dimension
|
|
120x65x12
|
mm
|
|
Weight
|
|
120
|
g
|
|
Specification
|
|
|
|
For other PCM/PCB, please check our PCM/PCB/BMS/CMB/UPS category
Warning
- If you want to use this protection circuit board for a battery that is less than the rated drain, you must add additional protection device to protect the battery itself. Such as: proper rated polyswitch.
- To achieve balance, each cell in battery pack must has equal voltage within tolerance. When charger LED turn Green, allow 30 minutes for pack to balance before use.
- You must be professional in Lithium battery pack to buy the protection circuit board. Misusing may cause battery damage or explode. We are not responsible for any damage caused by user.
|
