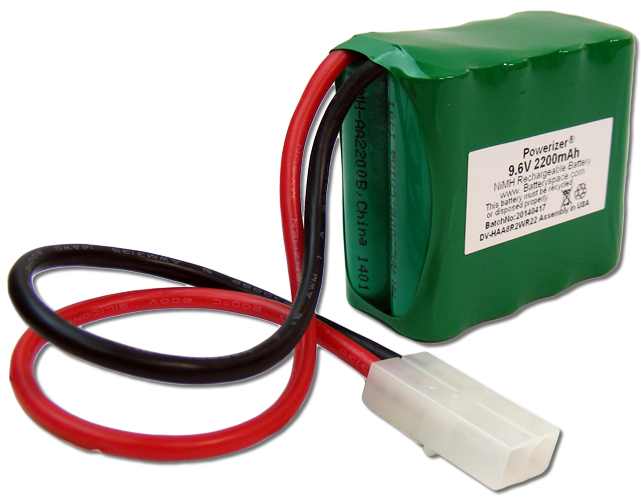

NiMH Rechargeable Battery: 9.6V 2200 mAh (2x4S/S, MH-AA2200B)

Option 2: with Tamiya connector
Your Price: From $32.00 to $35.00
Lead Time: 5 Business Day

Product Options

Battery NimH battery 9.6V 2200mAh made by 8 pcs of  NiMH AA 1.2V 2200mAh Flat top cells
Voltage 9.6V
Capacity 2200mAh
Max. Charge Current 660mA
Max. Discharge Current 2200mA
Terminal Options
  • DV-HAA8R2WR22: 6" long 18AWG open end wire only.
  • DV-HAA8R2WR22-v1: 6" long 14AWG wire with Tamiya male Connector.
  • DV-HAA8R2WR22-v2: 6"long 18 AWG wire output cables with Kobiconn DC Power Connector #1710-1311
  • DV-HAA8R2WR22-v3:6" long 14AWG wire with Tamiya female connector.
Dimension (LxWxH) 2.4"(61mm) x 2"(51mm) x 1.25"(32mm)
Weight 8 Oz (226 g)
Charger For fast and safe charging, please choose our 6V-12V Charger for this battery pack. Charging current must be 0.9A,and fully charged time is about 70 minutes.
Related Product You may go our Connector section to choose a connector .
Notes Things to know about Nimh Batteries
