Multi-Current Universal Smart Charger for 9.6V - 18V NiMH/Nicd Battery Packs , CE / UL / FCC / EMC / ESV Listed

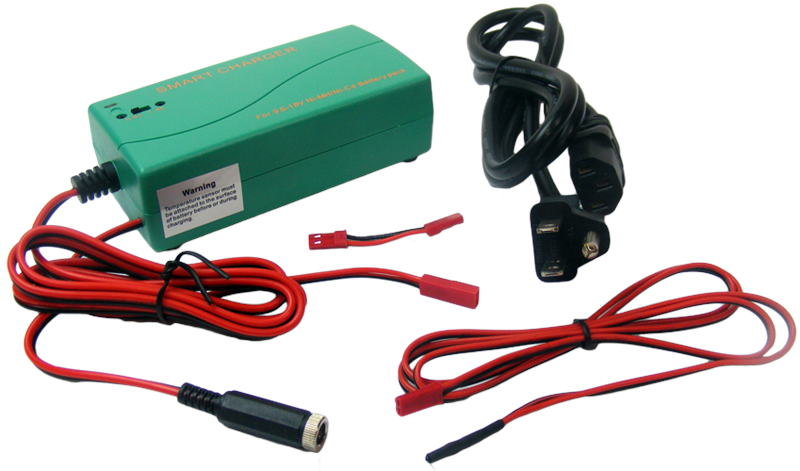

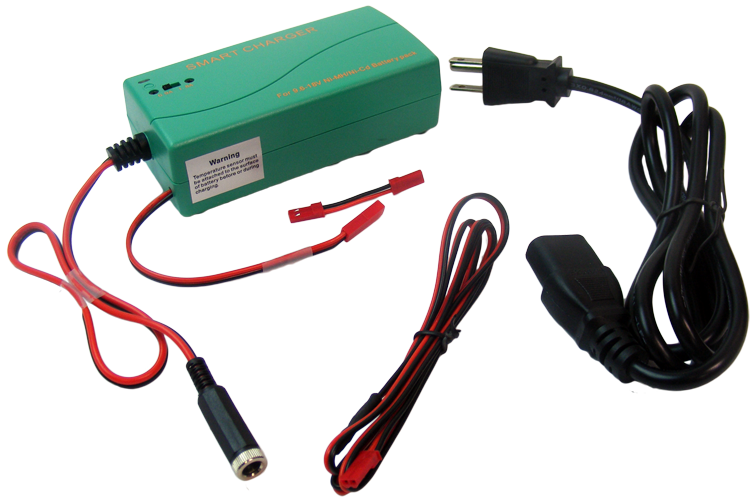

 Option 1: CH-UN180, Female Tamiya Connector  CH-UN180v2, Female Tamiya Connector Option 2: CU-J303, 5.5 x 2.5mm Male barrel connector Option 3: Cu-J367, 5.5 x 2.5mm Female Barrel Connector  Option 4:CU-J614, 5.5x2.1mm Male Jack without thermistor  Option5: CU-J781, 5.5x2.1mm Female Jack  Option 6: CU-J585, 5.5x2.1mm Female Jack, 12 inches long wire Option 7: CU-J644, Anderson Connector Option 8: CH-UN180CP, Cigarette Male Plug Option 9 : Ebike Connector Option 10: CU-J645, Conxall Connector Option 11: CH-UN180WU, Digital Battery Monitor Option 12: CU-CH127, 5.5 x 2.1mm Male barrel connector  Option 13: with 2 Pin Connector Option 14: CU-J994,"Y" cable 2 x 5.5x2.1mm Male  Female to Femal Adaptor JST connector for CU-J781 CU-N132:Trail-Tech Male Plug CH-UN180-V1:standard Mael Tamiya ConnectorCU-J585, with PR-002A CH-UN180-V3 |
|
Your Price: From $28.95 to $92.95
Product Options
| Connectors: |
|
|
Features
| Features |
- Universal Fast Smart Charger is designed for charging any NiMH / NiCd Battery Pack from 9.6V - 18V, for 8 to 15 cells pack.
- After connect AC power (without connect to battery), LED flashing red-green-red before charging to test the operation of the charger if ready to use.
- Just plug it in and wait for the battery to get fully charged. Red LED indicates charging and Green LED means fully charged
- Short circuit protection: No output voltage from the charger if the battery is not connected.
- 120-240V AC input for worldwide use.
- 70oC Thermistor (temperature sensor) is provided as an extra safety device to control battery pack's charging temperature (over heat protection)
|
| Charging Current |
Two current levels: 0.9A and 1.8A selectable by a switch for low (< 2800mAh) and high capacity battery pack (> 2800mAh)
- For battery pack between 900mAh and 2800 mAh, please use the low level switch -- charging rate: 0.9A Max
- For battery pack over 2800 mAh, please use the high level switch -- charging rate: 1.8A Max (1.75A standard)
|
| Charging time |
The smart charger will cut-off power automatically when battery is full. Charging time can be estimated as the follow:
Time ( Hrs ) = Battery capacity (Ah) / Charging current ( 0.9A or 1.8A )
|
| Dimension(LxWxH) |
140mm x 64mm x 38mm (5.5" X 2.5" X 1.5") |
| Weight |
14oz (397 g) |
| Certifications |
- CE, FCC & UL(#E308310)
- EMC & ESV Listed.
|
Functions
- Auto detect battery pack voltage and set up proper charging voltage
- Cut-off power automatically by negative delta V IC when battery pack is fully charge.
- Protect battery from over current, short circuit & reverse polarity.
- One temperature sensor outlet ( Male BEC connector) is installed with the charger to double protecting battery from overcharged.
- You must use temperature sensor to charge 12V or higher NiMH battery pack, except water bottle NiMh batteries.
- For <12V battery pack, you may recharge battery without sensor. However, putting a temperature sensor on the battery pack is always a good idea
- Please download specification of (0.9-1.8A) for any 9.6V- 18V NiMH/NiCd pack charger
|
Output Connector Options
|
|
- Part# CH-UN180V2, Female Tamiya Connector (Discontinued)
|
|
|
|
|
|
|
|
|
|
|
|
|
- Part Number: CH-UN180CP, Cigarette Male Plug

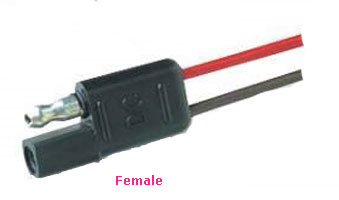

- one female to female BEC adaptor included
|
- Red (expose Pin) = Positive
- Black (unexposed Pin) = Negative
|

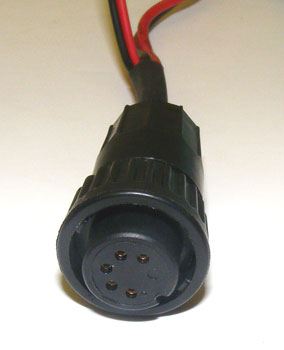

- Pin 1 - no connection
- Pin 2 - Positive (RED)
- Pin 3 - Thermistor (Red)
- Pin 4 - Thermistor (Black)
- Pin 5 - Negative (Black)

|
|
|
|
|
- Part Number: CU-CH-128, with 2 Pin Male Connector
- one female to female BEC adaptor included
|
- Part Number: CU-J994 with "Y" splitter cable 2 x 5.5x2.1mm Male Plugs (this item is no longer available)
- 6.0" from charger to "Y" and each split cable is 30" long
|
- Part Number: CU-R300C, with 1838277-1 connector, pin 3 (+), pin 4 (-)
|
|
|
|
|
|
|
Accessories Included
- One Power Cable
- One temperature sensor ( 70oc thermistor ) with BEC connector is included. Use for battery pack that does not have thermostat protection. It must be connect between battery charger and the battery pack before charging to protect battery from overcharging. It will cut-off power if battery temperature is over 70 oC.
- One female to female BEC adaptor is included
|
How to Use Temerature Sensor
- (1) attach temperature sensor to battery pack inside firmly --- you can use electronic tape or glue to attach the sensor to one of battery's surface
- (2) Plug (red, BEC ) connector into the temperature socket into the charger
|
Warnings
- Please don't use the charger to charge battery pack with capacity less than 900 mAh
- If your battery pack is 12V or more, please always use temperature sensor (included) to double ensure power cut-off. The temperature sensor shall be attached to battery pack firmly by electric tape or glue (see above to see how)
- If you have question on what current setting to use, please check the battery specification to find out what is the maximum charging current before selecting the charging current.
- The charger is designed for indoor use only.
- The charger should be horizontally positioned and work in well ventilated condition, avoid moisture and keep it away from inflammable explosive goods.
- Ambient temperature shall not be more than 40 degreeo C when using the charger.
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
|
