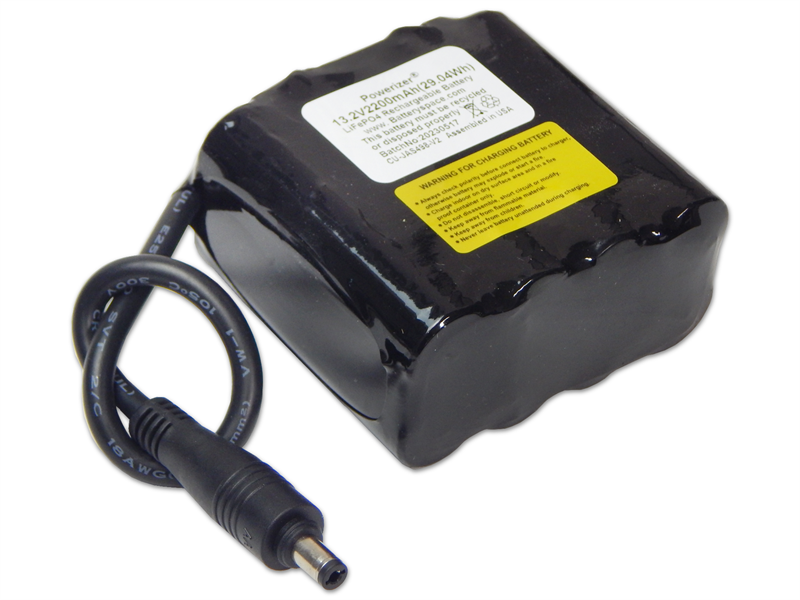

LiFePO4 18650 Battery: 13.2V 2200 mAh (29.04Wh, 14A rate, 2x4S/S, APR18650m1-B)

CU-JAS498-V2
Your Price: From $149.44 to $158.64
Lead time 5-10 Business Days / Hazmat handling fee required*

Product Options

Terminal:

Features

*Important Shipping Regulation        This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery
Voltage       Nominal Voltage: 13.2V;
      Maximum Charge Voltage: 14.4V;
      Discharge Cut off voltage should be set at ≥8V
Capacity       2200 mAh
Cycle Life         > 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection
Terminal
Charge Current       Standard: 3A; Maximum: 6A
Discharge Current       Maximum: 14 Amp
Dimensions(LxWxH)       74.5mm x 36mm  x  69mm
Weight       11.8 oz
Temperature       Charge: 0°C tp 55°C ;
      Discharge: -30°C to 55°C;
      Storage: -40°C to 60°C;

Warnings

  • 12V LiFePO4 battery pack shall be cut-off at 14.4V during charging and 8V during discharging
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
