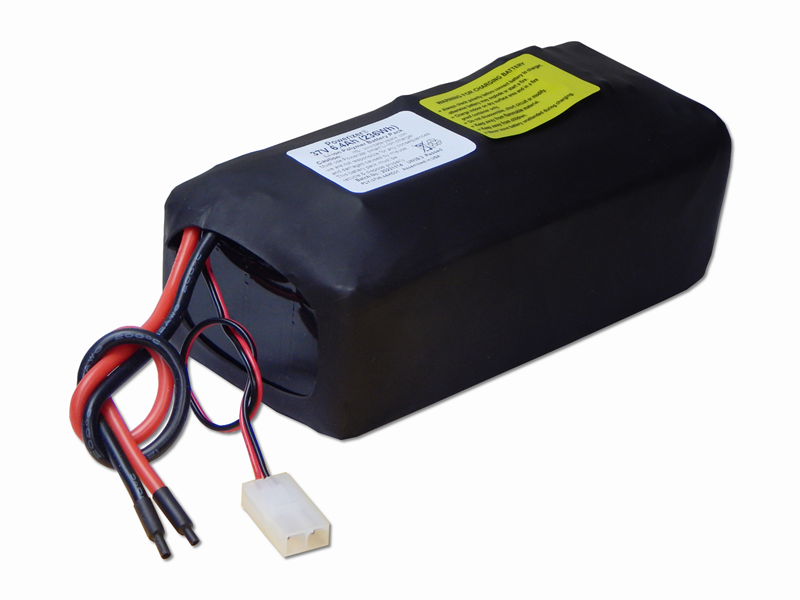

Li-Ion Battery: 37V 6.4Ah (8048168, 236Wh) + Fire Retardant Bag - UN38.3 Passed
|
|
In Stock
Product ID # 4035
Part Number: PLY-37V6.4AHC01
Lead Time: 5 Business Days!
Quantity Discounts
| Quantity | Amount |
| 5 to 20 | $320.10 |
| 21 to 50 | $313.50 |
| 51 to 100 | $306.90 |
| 101 or more | $297.00 |
|
|
Features
| Battery |
- High Power Polymer Li-Ion Battery: 37V 6.4Ah (236 Wh) 30A Drain Rate
- Wrapped by heavy-duty Heat shrink tube
|
| Voltage |
37V (working) 42 V ( peak) |
| Capacity |
6.4 Ah (236 wh) |
| Terminal |
- Charging terminal: 6" 21 AWG with standard Male Tamiya plug.
- Discharging terminal: 6" 12 AWG open end wire
- Included 1x Fire Retardant Bag: 295mmx230mmx75mm --- Reduce the chance of damage if caught fire
- This Fire Retardant Bag (Li-Ion Safer Bag) is intended to reduce the chance of damage in the event of catching fire.
- Must locate & seal the battery pack in the bag while charging / leaving without any attention
|
| Protection |
- 1x PCM (30A limit) with balance function installed in the battery pack to balance charging and protect battery module from
- Over discharge / Over discharge / Over drained / short circuit
- Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.
|
| Cycle life |
>300 |
| Charge Current |
Max: 6400mA |
| Discharge Current |
Max: 6400mA |
| Dimensions(LxWxH) |
7" (178mm) x 3.3" (84mm) x 2.76" (70mm) |
| Weight |
1905 grams (4.2 Lb) |
| Warranty |
Limited Warranty: Repair or exchange only within 30 days. |
|
 |
Please download the User Manual here
Warnings
- Please wait for 30 minutes after charged and allow PCM balancing cells to achieve the best performance
- Strongly suggest you put the battery pack into a water / fire resistant box for safety use
- Please note this battery is for R&D use only and NOT for individual customers. We are not responsible for any damages or losses caused by misuse
- Please never discharge the battery pack beyond its Max. rating
- For safety warning please see the link here
- California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
|
|
