Custom Li-Ion 18650 Battery: 18.25V 5.2Ah (95Wh, 7A rate, 2x5S/S, INR18650M26)


PR-CU-R501-V2
Your Price: From $121.80 to $130.00
Lead Time: 5 Business Days / Hazmat handling fee required*

Product Options

Terminal:
Update on 8/5/2021 Previous cell discontinued, updated to INR18650 M26 cell.
 *Important Shipping Regulation This pack is for testing (prototype) only. It has not been UN38.3 tested yet.  Read more...
Battery

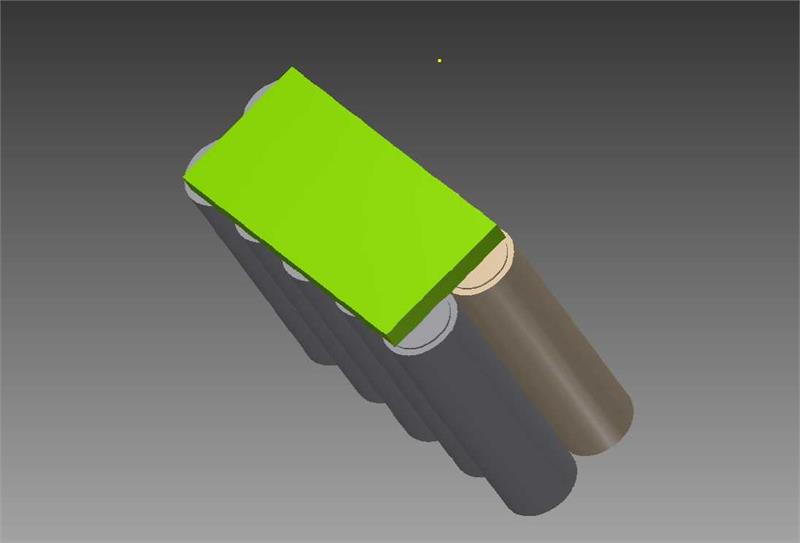

  • Custom 18.25V 5.2Ah Li-Ion Battery pack is made of 10 pcs LG 2600mAh Li-Ion 18650 Cell in 5S2P configuration.
  • The battery pack is wrapped by black PVC.
Voltage Nominal: 18.25V; Maximum Charge Voltage: 21V; Discharge Cut off: 13.75V
Capacity 5200 mAh
Protection
  • 1x 7A PCB installed with the  battery pack and protects the battery from
    • Over-charge  / Over-discharge / Over drain / Short circuits
Terminals
Charge Current Standard: 0.2C / 1000mA; Maximum: 1C / 2500mA
Discharge Current 7000mA limited by PCB
Dimensions(LxWxH)


3.6” x 2.75” x 1.5" (91.44mm x 69.85mm x 38.1mm)

Weight 1.2lb
Related Products
Warnings
  • Li-Ion battery may explode if misused.  We are not responsible for any damages or losses caused by misuse (including but not limited to: improper charging/discharging, any changes of this battery pack, disassembling battery packs).
  • Always charge battery with attention.  Battery pack shall be placed in a fire-proof place to avoid any accidents
  • Please check battery polarity before plugging battery into light or charger
  • California residents: Warning: Cancer and Reproductive Harm - See Prop 65 Warnings
